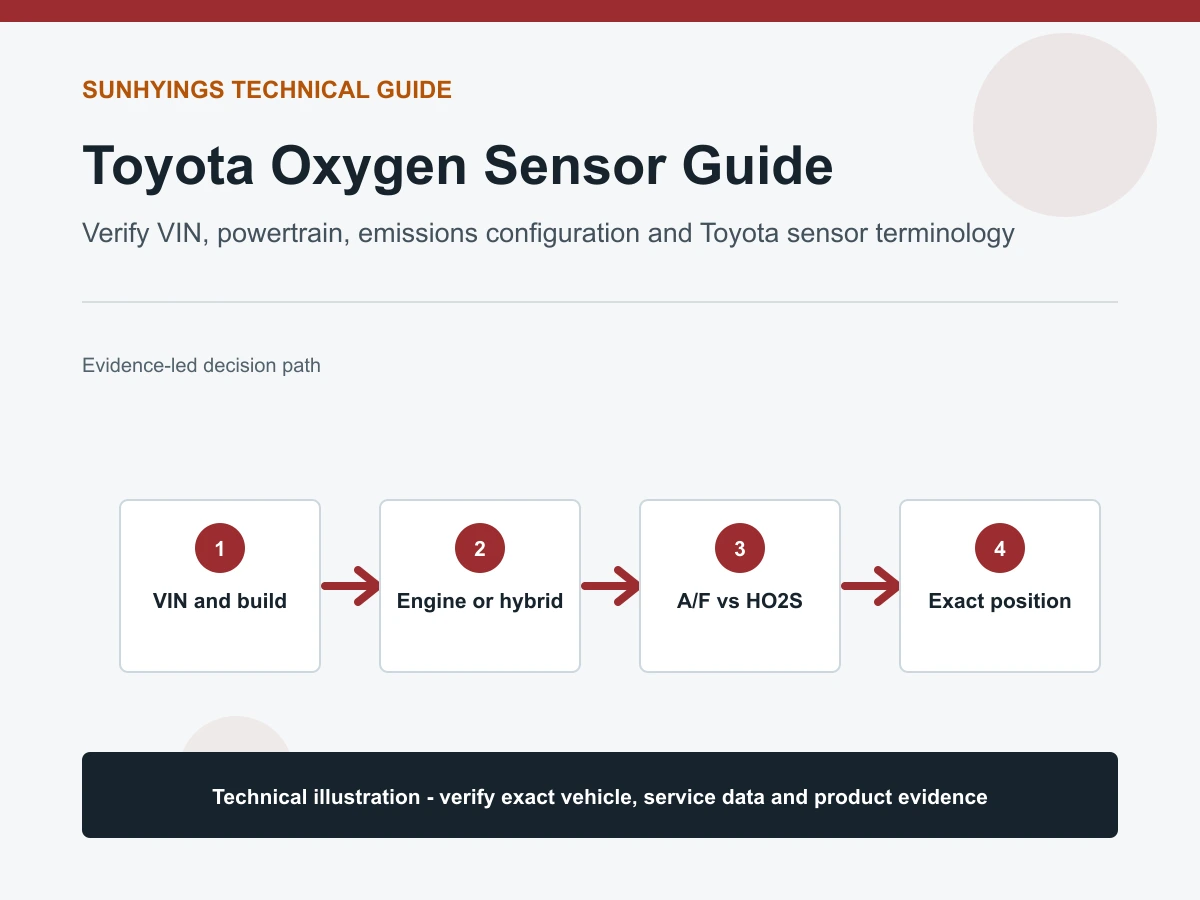

Toyota Oxygen Sensor Guide: Diagnosis and Fitment Checks

Oxygen Sensor Technical Guide

A Toyota oxygen sensor replacement guide focused on diagnosis, exact vehicle and engine identity, sensor position, fitment evidence and safe verification.

Author: Sunhy · Technical review: Sunhyings content team · Last updated July 28, 2026

What this Toyota guide can and cannot confirm

This is a neutral diagnostic and fitment-verification guide. It does not publish an unverified Toyota OE number, model-year application, sensor count, labor time or torque value. Sunhyings inventory, manufacture and approved fitment are not claimed. Exact service information and current application data for the VIN/configuration control the repair.

Popular Toyota model names are not complete fitment identities

Build the vehicle and sensor identity

• VIN and exact year/model/trim context
• Engine displacement/code and fuel type where applicable
• Sales market and emissions label/configuration
• Bank 1 or Bank 2 and Sensor 1 or Sensor 2
• OE number from a verified source or readable old-part label
• Sensor technology, connector keying, pins, lead and clips

Diagnose before ordering

Record current, pending and permanent codes, freeze frame and readiness. Inspect harness routing, terminals and exhaust leaks. Test heater power/ground/control for heater codes. Compare fuel trims and technology-specific sensor response for mixture or response codes. P0420/P0430 concerns catalyst-system efficiency and is not an automatic rear-sensor order.

Safe installation boundary

Let the exhaust cool and use approved vehicle support. Follow the exact Toyota service procedure and replacement-sensor instructions for access, torque and thread compound. Do not cut a direct-fit harness. Route the lead away from heat, sharp edges and moving parts, and restore every clip and shield.

Post-repair verification

Check the connector, routing and exhaust sealing, then confirm heater/circuit and sensor response under specified conditions. Complete the applicable legal monitor procedure. Clearing codes, using a spacer/simulator or disabling a monitor does not prove repair.

A Toyota verification sequence that avoids model-name guessing

Toyota model families can span several engines, generations and powertrain configurations. Hybrid and non-hybrid variants must not be merged, and an owner-manual lookup does not replace repair information or a current parts catalog. Use the VIN/build context and emissions label to select the correct information set.

Questions to answer for common Toyota model searches

A model-family table is a verification checklist, not a fitment list. It intentionally contains no sensor count, side, OE number or year range. Those facts must come from current information matching the exact vehicle.

Read Toyota terminology in context

Oxygen sensor, heated oxygen sensor and A/F sensor

Toyota information may distinguish an upstream air-fuel-ratio sensor from an oxygen sensor at another position. “Oxygen sensor” and “O2 sensor” name the broad family. A/F, wideband and heated labels can imply different circuits or roles, but the complete service description controls. Do not infer technology from the number of wires or from a marketplace title.

Bank and Sensor designation

Bank 1 contains cylinder 1. Sensor 1 is commonly before the relevant catalyst and Sensor 2 after it. This common naming helps orient the reader but does not provide a universal physical side. Confirm cylinder numbering and exhaust flow for the exact engine.

Generic scan-tool labels

A scan tool may display HO2S voltage, A/F current, lambda or equivalence ratio. Confirm that the PID is supported, matches the physical circuit and uses the expected units. A generic menu can list positions or values that are not implemented for the vehicle.

Map engine banks, catalysts and connectors

A four-cylinder Toyota, a V-engine Toyota and a hybrid configuration can use different exhaust architecture. Do not assign two or four sensors from cylinder count. For a V engine, locate cylinder 1 before naming Bank 1; for every engine, trace the relevant catalyst path.

Account for engine, build and emissions variants

Camry, Corolla, RAV4 and Tacoma names each cover multiple generations. Engine choice, hybrid status, emissions label and production breakpoint can change the sensor and connector. Keep the exact powertrain in every diagnostic screenshot and quotation.

A registration year or model badge does not necessarily equal production date or VIN breakpoint. Imported vehicles can also differ from the market assumed by a local catalog. Record the under-hood emissions label and use a catalog that explicitly covers the sales market.

Turn Toyota codes into test paths, not part orders

Save all current, pending and permanent codes, freeze frame and readiness before clearing. Multiple codes can reveal a shared supply, system-wide mixture fault or misfire. Clearing memory can remove context and reset monitors without repairing anything.

Interpret live data with technology and operating state

Confirm warm-up and control state

A cold sensor or engine outside closed-loop conditions should not be compared with a warm response specification. Record coolant temperature, load, speed and commanded state with the sensor value.

Compare response with fuel trims

Positive or negative correction shows what the control module is attempting, not which component failed. Intake leaks, airflow/load error, fuel delivery, purge, ignition and mechanical condition can create the exhaust result a healthy sensor reports.

Use downstream data in catalyst context

The downstream signal is evaluated with upstream behavior and catalyst monitor conditions. A waveform comparison without exhaust sealing, engine condition and valid monitor criteria cannot establish a failed sensor or catalyst.

Build the replacement identity only after diagnosis

For a Toyota inquiry, send the VIN/build context, exact engine or hybrid configuration, emissions label, Bank/Sensor position, old-part number and full connector/cable photos. Do not interpret a superseded or candidate OE mapping as universal coverage.

Direct-fit and universal are separate decisions

A direct-fit sensor supplies an application connector and lead arrangement, but it still needs exact coverage. A universal sensor requires manufacturer-approved circuit compatibility and splice instructions; universal does not mean every Toyota vehicle. Wire colors are not a universal pinout standard. Do not cut a direct-fit harness or improvise a splice near the exhaust.

Installation and safety checks

1. Let the exhaust cool and use approved vehicle lifting/support.
2. Confirm the physical sensor and connector before disconnection.
3. Protect exhaust threads and nearby components during removal.
4. Compare old and replacement technology and interface details.
5. Follow exact product/service torque and thread-compound instructions.
6. Restore heat sleeves, clips, shields and safe cable routing.

There is no responsible universal torque or labor time for every Toyota application. Access, corrosion, sensor design and surrounding components vary. Stop when threads, bung, connector or harness damage changes the job scope.

Use an evidence hierarchy when sources disagree

Search results often combine owner discussions, marketplace listings, generic code definitions and application catalogs. They do not have equal authority. Start with exact Toyota service information for circuit identity, diagnostic conditions, connector views and installation procedure. Use a current controlled parts source for OE identity and supersession. Use the under-hood label, VIN/build data and the removed part to resolve configuration. Aftermarket catalogs can then be evaluated as cross-references, not treated as proof merely because several sellers repeat the same row.

When two controlled sources conflict, record both values, their dates and the exact vehicle fields used. Do not average the answers or choose the listing with the clearest product photo. Hold the affected application until the conflict is resolved by an authoritative source or a documented physical and electrical comparison.

Build a diagnostic evidence packet before replacement

A useful record lets another technician understand why replacement was approved. Capture the full DTC description and status, freeze-frame conditions, relevant service-test step, battery/system voltage, heater power and control checks where applicable, harness and terminal condition, intake and exhaust leak findings, fuel trims, misfire evidence and the technology-specific sensor response. Identify the physical connector tested. A graph without vehicle state, units and sensor position cannot be interpreted reliably.

Separate observations from conclusions. “P0135 stored” is an observation. “The heater has specified supply but an open element at the identified connector” is evidence supporting a sensor decision. “The sensor is bad” based only on a code is an unsupported conclusion. The same discipline applies to mixture and catalyst-monitor codes: document the competing causes that were tested and the condition under which the monitor or response failed.

Preserve evidence after the repair

Record the installed part identity and lot if available, connector engagement, cable route, exhaust sealing and post-repair values under comparable conditions. Do not erase the before-state before it is saved. If a concern returns, this packet separates wrong fitment, installation damage, circuit recurrence, unresolved engine faults and possible product nonconformity. It also gives a supplier enough information to investigate without assuming every warning light is a warranty defect.

Compare the old and replacement sensor as a system

Place the parts side by side without contaminating or striking the sensing element. Compare the stamped or labeled identifiers, thread and sealing seat, hex access, shield length and hole pattern, cable protection, overall lead length, grommets and clips, connector housing, keying, latch, terminal count and secondary lock. Then compare the drawing or application specification. A visible match is a rejection screen, not final approval: heater resistance range, signal strategy, calibration and pin assignment may differ while housings look alike.

Reject or stop the installation if the cable must be stretched across the exhaust, the connector needs force, a clip cannot return to its original location, the shield contacts another component, the thread or seat differs, or the specified technology cannot be confirmed. Do not modify a direct-fit connector to make a candidate fit. If a universal sensor is expressly approved, use only its manufacturer’s application and splice procedure and retain the harness protection required near the exhaust.

Use explicit stop, diagnose and release decisions

A good workflow does not force every inquiry toward a sale. Use three visible states. Stop when vehicle identity, emissions configuration, physical position or sensor technology is ambiguous, or when two authoritative sources conflict. Diagnose when fitment is known but the evidence does not establish sensor failure; complete the circuit, leak, fuel-control and response checks required by the complaint. Release only when both the replacement need and the part identity are supported. Record who made the decision and which evidence was used.

This separation prevents a correct diagnostic conclusion from being paired with the wrong part, and it prevents a correct-looking part from being sold for an undiagnosed fault. It also gives customer service a truthful response when key data is absent: the status is Pending, not “probably fits.” For an RFQ, quote only released application rows and list blocked rows separately. For a repair, keep the original evidence until the relevant circuit response and legal monitor are verified after installation.

Toyota A/F sensor wording changes the test strategy

Many Toyota searches use “O2 sensor” for every threaded exhaust sensor, while service and parts information may distinguish an upstream air-fuel-ratio sensor from a downstream heated oxygen sensor. That distinction is not cosmetic. An A/F sensor and its control circuit can be represented by current, lambda, equivalence ratio or a manufacturer-scaled scan value rather than the familiar rich/lean switching voltage associated with a narrowband sensor. Confirm the exact data identifier, units and expected response before judging the graph.

Do not apply a generic narrowband voltage test to a circuit identified as an A/F sensor. Do not back-probe terminals until the exact wiring diagram and an approved test method identify the terminal and tool. A wrong test connection can distort the signal or damage a sensitive circuit. If the scan tool offers both generic oxygen-sensor and manufacturer-specific A/F data, verify which item the Toyota procedure uses and whether the engine has met the enabling temperature and load conditions.

Keep Toyota hybrid and non-hybrid evidence separate

A Camry, Corolla or RAV4 model name may refer to different powertrain families. Hybrid status affects vehicle identity, service information selection and sometimes exhaust-system operation or packaging. It is not enough to add the word “hybrid” after choosing a part from a gasoline-only listing. Start the lookup again with the complete powertrain and market. Preserve the exact engine designation and production context in the diagnostic record and RFQ.

During diagnosis, confirm that the engine is operating in the state required by the procedure. A hybrid vehicle may stop and restart the engine under its control strategy, so a snapshot taken without recording engine-running state, temperature and load can be misleading. Follow Toyota service safety requirements for the complete vehicle. Oxygen-sensor work does not authorize work on high-voltage components, and this guide does not replace hybrid-system isolation or technician qualification procedures.

Reconcile VIN, build data and the emissions label

Use the VIN to access the correct vehicle context, but do not treat a basic VIN decoder as a full sensor catalog. Confirm the engine/powertrain from authoritative data and read the under-hood emissions label. The label helps establish the regulatory configuration and can expose a mismatch between a vehicle and a catalog row built for another market. Production dates and catalog breakpoints should be recorded exactly; model year alone can cross a change.

1. Record the VIN and the vehicle’s current market or import history.
2. Confirm the exact engine or hybrid powertrain in Toyota information.
3. Photograph or transcribe the emissions label without publishing personal vehicle data.
4. Identify the physical Bank/Sensor position from the matching service diagram.
5. Resolve the OE reference and any supersession in a current controlled source.
6. Compare connector, lead, clips and sensor construction before installation.

If the removed part number disagrees with current Toyota data, investigate whether a previous repair installed the wrong part, the number is superseded, or the catalog context is wrong. Do not automatically use the removed sensor as the fitment authority.

Toyota-oriented diagnostic decision points

For a heater code, identify whether the circuit belongs to the A/F sensor or HO2S, then test the specified supply, control, connector and element according to the exact diagram. For a mixture code, inspect intake and exhaust leakage, airflow/load calculation, fuel delivery, purge behavior, ignition and mechanical condition before treating the reporting sensor as the cause. For a response code, reproduce the required operating state and compare technology-specific response rather than counting generic voltage crossings.

For P0420 or P0430, preserve misfire and fuel-control evidence, confirm exhaust sealing and compare the correct upstream and downstream devices only under valid catalyst-monitor conditions. A recently replaced rear sensor, a flat graph at idle or a marketplace claim that one sensor “fixes P0420” does not establish the repair. The catalyst, engine and both measurement paths remain in scope until the diagnostic procedure narrows them.

Prepare a Toyota sensor sourcing record

Sunhyings can review this evidence for a sourcing request, but it should not turn a Toyota model keyword into an unverified fitment promise. Quote only the rows whose vehicle, position, technology and interface evidence agree, and keep unresolved variants marked Pending.

Composite Toyota verification scenario

Composite engineering scenario: a RAV4 model-name search returns several candidates, but the request omits powertrain and emissions configuration. The old connector resembles more than one listing and the code only states a bank/position. The reviewer pauses the order, resolves vehicle and position identity, and then follows the correct circuit test. This scenario combines common catalog and diagnostic risks; it is not a Sunhyings customer case, fitment record or claim about a particular vehicle.

Composite Toyota diagnostic scenario

Composite diagnostic scenario: A Camry arrives with a catalyst-efficiency code after an upstream air-fuel-ratio sensor was replaced elsewhere. The replacement is not condemned from the code. The technician first confirms the exact engine and emissions configuration, checks for exhaust leakage, verifies that the installed upstream device matches the specified A/F technology, and compares upstream and downstream data under the monitor conditions. The investigation stays open until engine, exhaust, sensor and catalyst evidence agree.

The sequence is intentionally evidence-led: confirm the exact circuit, test the vehicle-side causes and compare the response with the applicable procedure before approving a part. It is a composite training example, not a Sunhyings customer, warranty result or statement that the named model commonly has this fault.

Verify the repair and monitor

After repair, confirm connector lock, lead routing, heat clearance and exhaust sealing. Check the heater/circuit and technology-specific sensor response under defined conditions. Complete the applicable legal readiness monitor. A warning light that was cleared manually is not evidence that the original monitor passed; permanent codes may remain until the control module confirms a successful result.

Emissions and product-claim boundary

Do not use spacers, defoulers, simulators, sensor deletes or software changes to conceal catalyst monitoring. These methods do not repair the root cause and may violate emissions law. This educational page does not confirm that Sunhyings sells, stocks, manufactures or guarantees a sensor for any Toyota application. Fitment remains Pending until project-specific evidence is matched.
