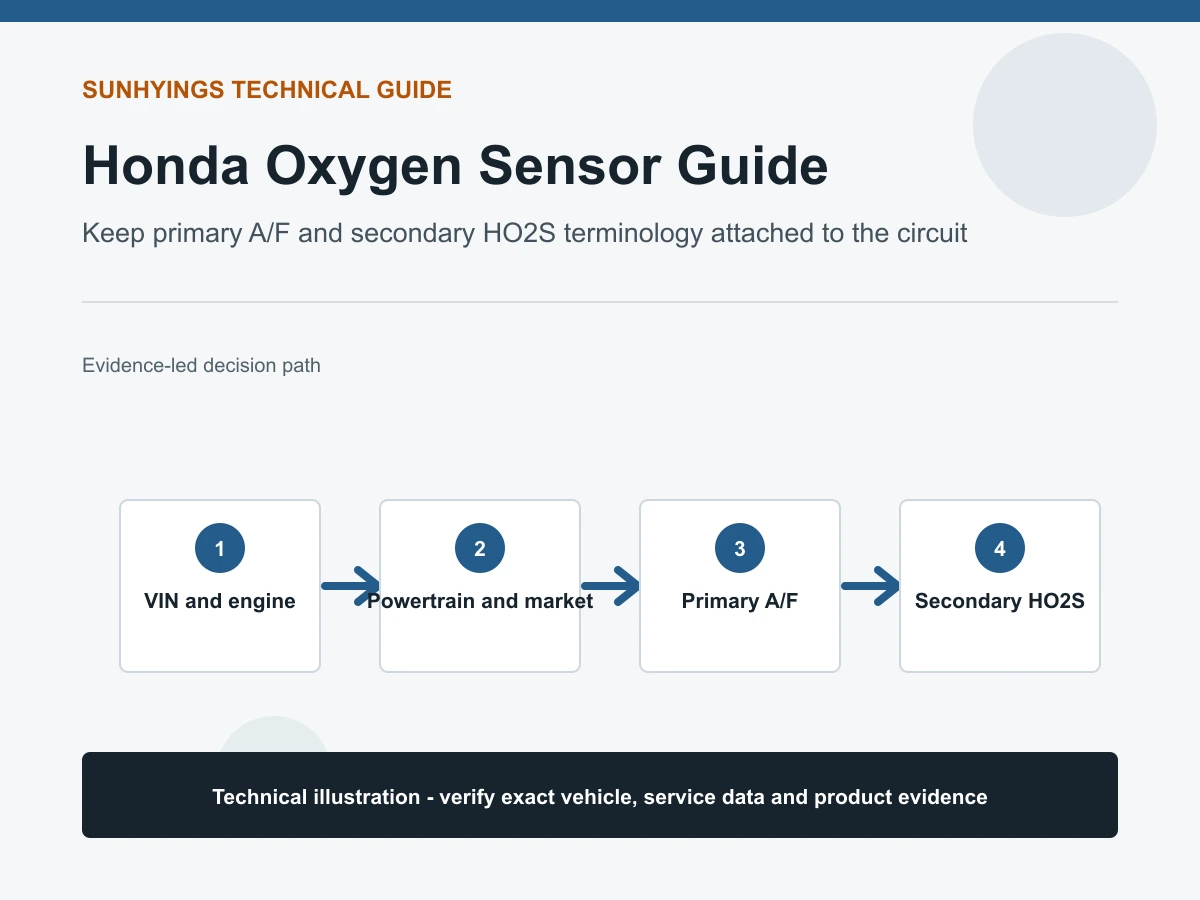

Honda Oxygen Sensor Guide: Diagnosis and Fitment Checks

Oxygen Sensor Technical Guide

A Honda oxygen sensor replacement guide focused on diagnosis, exact vehicle and engine identity, sensor position, fitment evidence and safe verification.

Author: Sunhy · Technical review: Sunhyings content team · Last updated July 28, 2026

What this Honda guide can and cannot confirm

This is a neutral diagnostic and fitment-verification guide. It does not publish an unverified Honda OE number, model-year application, sensor count, labor time or torque value. Sunhyings inventory, manufacture and approved fitment are not claimed. Exact service information and current application data for the VIN/configuration control the repair.

Popular Honda model names are not complete fitment identities

Build the vehicle and sensor identity

• VIN and exact year/model/trim context
• Engine displacement/code and fuel type where applicable
• Sales market and emissions label/configuration
• Bank 1 or Bank 2 and Sensor 1 or Sensor 2
• OE number from a verified source or readable old-part label
• Sensor technology, connector keying, pins, lead and clips

Diagnose before ordering

Record current, pending and permanent codes, freeze frame and readiness. Inspect harness routing, terminals and exhaust leaks. Test heater power/ground/control for heater codes. Compare fuel trims and technology-specific sensor response for mixture or response codes. P0420/P0430 concerns catalyst-system efficiency and is not an automatic rear-sensor order.

Safe installation boundary

Let the exhaust cool and use approved vehicle support. Follow the exact Honda service procedure and replacement-sensor instructions for access, torque and thread compound. Do not cut a direct-fit harness. Route the lead away from heat, sharp edges and moving parts, and restore every clip and shield.

Post-repair verification

Check the connector, routing and exhaust sealing, then confirm heater/circuit and sensor response under specified conditions. Complete the applicable legal monitor procedure. Clearing codes, using a spacer/simulator or disabling a monitor does not prove repair.

A Honda verification sequence that avoids model-name guessing

Honda model names can include naturally aspirated, turbocharged, hybrid and different-market configurations. The same consumer model label is not a sensor identity. Record the VIN, exact engine/powertrain and emissions label before choosing service data or a catalog result.

Questions to answer for common Honda model searches

A model-family table is a verification checklist, not a fitment list. It intentionally contains no sensor count, side, OE number or year range. Those facts must come from current information matching the exact vehicle.

Read Honda terminology in context

Oxygen sensor, heated oxygen sensor and A/F sensor

Honda documentation may use primary A/F sensor and secondary heated oxygen sensor terminology for different positions and signal strategies. “Oxygen sensor” and “O2 sensor” name the broad family. A/F, wideband and heated labels can imply different circuits or roles, but the complete service description controls. Do not infer technology from the number of wires or from a marketplace title.

Bank and Sensor designation

Bank 1 contains cylinder 1. Sensor 1 is commonly before the relevant catalyst and Sensor 2 after it. This common naming helps orient the reader but does not provide a universal physical side. Confirm cylinder numbering and exhaust flow for the exact engine.

Generic scan-tool labels

A scan tool may display HO2S voltage, A/F current, lambda or equivalence ratio. Confirm that the PID is supported, matches the physical circuit and uses the expected units. A generic menu can list positions or values that are not implemented for the vehicle.

Map engine banks, catalysts and connectors

Inline-engine Civic, Accord or CR-V configurations and V6 Pilot configurations require different bank reasoning. On a V engine, Bank 1 follows cylinder 1; on an inline engine, a generic Bank 2 scan label may not represent a physical circuit. Trace catalysts and connectors from exact diagrams.

Account for engine, build and emissions variants

Civic, Accord and CR-V generations can change engines, turbo/hybrid status and exhaust layouts. Pilot V6 applications add two-bank identification. Do not carry a part number or side convention from one generation or engine into another.

A registration year or model badge does not necessarily equal production date or VIN breakpoint. Imported vehicles can also differ from the market assumed by a local catalog. Record the under-hood emissions label and use a catalog that explicitly covers the sales market.

Turn Honda codes into test paths, not part orders

Save all current, pending and permanent codes, freeze frame and readiness before clearing. Multiple codes can reveal a shared supply, system-wide mixture fault or misfire. Clearing memory can remove context and reset monitors without repairing anything.

Interpret live data with technology and operating state

Confirm warm-up and control state

A cold sensor or engine outside closed-loop conditions should not be compared with a warm response specification. Record coolant temperature, load, speed and commanded state with the sensor value.

Compare response with fuel trims

Positive or negative correction shows what the control module is attempting, not which component failed. Intake leaks, airflow/load error, fuel delivery, purge, ignition and mechanical condition can create the exhaust result a healthy sensor reports.

Use downstream data in catalyst context

The downstream signal is evaluated with upstream behavior and catalyst monitor conditions. A waveform comparison without exhaust sealing, engine condition and valid monitor criteria cannot establish a failed sensor or catalyst.

Build the replacement identity only after diagnosis

For Honda fitment review, preserve the source term (primary A/F or secondary HO2S), exact engine/powertrain, emissions market, Bank/Sensor position, OE reference and connector route. A plug match cannot establish the correct signal strategy.

Direct-fit and universal are separate decisions

A direct-fit sensor supplies an application connector and lead arrangement, but it still needs exact coverage. A universal sensor requires manufacturer-approved circuit compatibility and splice instructions; universal does not mean every Honda vehicle. Wire colors are not a universal pinout standard. Do not cut a direct-fit harness or improvise a splice near the exhaust.

Installation and safety checks

1. Let the exhaust cool and use approved vehicle lifting/support.
2. Confirm the physical sensor and connector before disconnection.
3. Protect exhaust threads and nearby components during removal.
4. Compare old and replacement technology and interface details.
5. Follow exact product/service torque and thread-compound instructions.
6. Restore heat sleeves, clips, shields and safe cable routing.

There is no responsible universal torque or labor time for every Honda application. Access, corrosion, sensor design and surrounding components vary. Stop when threads, bung, connector or harness damage changes the job scope.

Use an evidence hierarchy when sources disagree

Search results often combine owner discussions, marketplace listings, generic code definitions and application catalogs. They do not have equal authority. Start with exact Honda service information for circuit identity, diagnostic conditions, connector views and installation procedure. Use a current controlled parts source for OE identity and supersession. Use the under-hood label, VIN/build data and the removed part to resolve configuration. Aftermarket catalogs can then be evaluated as cross-references, not treated as proof merely because several sellers repeat the same row.

When two controlled sources conflict, record both values, their dates and the exact vehicle fields used. Do not average the answers or choose the listing with the clearest product photo. Hold the affected application until the conflict is resolved by an authoritative source or a documented physical and electrical comparison.

Build a diagnostic evidence packet before replacement

A useful record lets another technician understand why replacement was approved. Capture the full DTC description and status, freeze-frame conditions, relevant service-test step, battery/system voltage, heater power and control checks where applicable, harness and terminal condition, intake and exhaust leak findings, fuel trims, misfire evidence and the technology-specific sensor response. Identify the physical connector tested. A graph without vehicle state, units and sensor position cannot be interpreted reliably.

Separate observations from conclusions. “P0135 stored” is an observation. “The heater has specified supply but an open element at the identified connector” is evidence supporting a sensor decision. “The sensor is bad” based only on a code is an unsupported conclusion. The same discipline applies to mixture and catalyst-monitor codes: document the competing causes that were tested and the condition under which the monitor or response failed.

Preserve evidence after the repair

Record the installed part identity and lot if available, connector engagement, cable route, exhaust sealing and post-repair values under comparable conditions. Do not erase the before-state before it is saved. If a concern returns, this packet separates wrong fitment, installation damage, circuit recurrence, unresolved engine faults and possible product nonconformity. It also gives a supplier enough information to investigate without assuming every warning light is a warranty defect.

Compare the old and replacement sensor as a system

Place the parts side by side without contaminating or striking the sensing element. Compare the stamped or labeled identifiers, thread and sealing seat, hex access, shield length and hole pattern, cable protection, overall lead length, grommets and clips, connector housing, keying, latch, terminal count and secondary lock. Then compare the drawing or application specification. A visible match is a rejection screen, not final approval: heater resistance range, signal strategy, calibration and pin assignment may differ while housings look alike.

Reject or stop the installation if the cable must be stretched across the exhaust, the connector needs force, a clip cannot return to its original location, the shield contacts another component, the thread or seat differs, or the specified technology cannot be confirmed. Do not modify a direct-fit connector to make a candidate fit. If a universal sensor is expressly approved, use only its manufacturer’s application and splice procedure and retain the harness protection required near the exhaust.

Use explicit stop, diagnose and release decisions

A good workflow does not force every inquiry toward a sale. Use three visible states. Stop when vehicle identity, emissions configuration, physical position or sensor technology is ambiguous, or when two authoritative sources conflict. Diagnose when fitment is known but the evidence does not establish sensor failure; complete the circuit, leak, fuel-control and response checks required by the complaint. Release only when both the replacement need and the part identity are supported. Record who made the decision and which evidence was used.

This separation prevents a correct diagnostic conclusion from being paired with the wrong part, and it prevents a correct-looking part from being sold for an undiagnosed fault. It also gives customer service a truthful response when key data is absent: the status is Pending, not “probably fits.” For an RFQ, quote only released application rows and list blocked rows separately. For a repair, keep the original evidence until the relevant circuit response and legal monitor are verified after installation.

Primary A/F and secondary HO2S are not interchangeable labels

Honda service and parts language may identify a primary air-fuel-ratio sensor and a secondary heated oxygen sensor. A consumer may call both an O2 sensor, but the names can point to different control roles, signal strategies and diagnostic procedures. Preserve the Honda term when recording the code, scan data and part request. Converting everything to “front sensor” or “rear sensor” removes information needed to select the correct test and component.

A primary A/F sensor can be represented through current, lambda, equivalence ratio or a manufacturer-scaled value. A secondary HO2S may be evaluated differently. Confirm the PID label and units, then use the exact Honda procedure to establish warm-up, engine speed/load and commanded conditions. A generic instruction to look for rapid 0-1 V switching may be inappropriate for the primary circuit. Likewise, a steady secondary value observed outside monitor conditions does not prove that it is healthy or failed.

Separate turbo, hybrid and naturally aspirated applications

Civic, Accord and CR-V families can span naturally aspirated, turbocharged and hybrid powertrains across generations and markets. These are not minor trim differences. Engine identity controls the exhaust route, sensor position, connector location and service data. Start with the VIN/build context and authoritative engine identification; never carry an OE candidate from one powertrain column into another because the model name and connector photograph look similar.

For a hybrid application, record whether the engine was running and met the procedure’s test conditions when live data was captured. Engine stop/start behavior can interrupt a casual idle observation. Follow Honda safety information for the complete vehicle; a sensor guide does not provide high-voltage service authorization. For a turbocharged application, use the exact diagram to understand sensor and harness location around heat sources and shields. Do not generalize access, cable route or labor time from a non-turbo engine.

Honda inline-engine and V6 bank logic

Many Civic, Accord and CR-V configurations use an inline engine where there is one cylinder bank, while Pilot and some Accord configurations use a V6 with two banks. A generic scan tool can still show a menu containing Bank 2 items; a menu entry is not proof that the engine implements the circuit. For a V6, identify cylinder 1 from the exact Honda engine diagram and follow the exhaust path before assigning Bank 1. Do not use firewall/radiator, left/right or driver/passenger rules across models.

1. Confirm the engine family and cylinder arrangement.
2. Locate cylinder 1 from matching Honda service information.
3. Trace each manifold and catalyst path.
4. Map the named primary/secondary or Bank/Sensor circuit to its connector.
5. Verify the connector view and wire colors only against the exact diagram.

This map prevents testing the wrong connector where harness branches run close together. Mark the connector non-destructively during diagnosis and remove temporary identification after the repair.

Honda code diagnosis: keep circuit, mixture and catalyst evidence separate

A heater code requires the specified electrical path: supply, fuse where applicable, control side, connector terminal condition and element measurement using Honda limits and test points. A lean/rich code requires engine-system evidence such as intake leakage, airflow/load calculation, fuel pressure or delivery, injector behavior, purge, ignition and mechanical condition. The primary A/F sensor may be accurately reporting the result. A response code needs a controlled response test with the correct A/F data, not a generic screenshot.

For catalyst-efficiency codes, diagnose the condition that allowed the monitor to run. Check misfire and fuel-control history, exhaust leakage, sensor identity and response, and catalyst evidence together. Replacing the secondary HO2S solely because it is downstream can create a repeat repair. Honda’s code description and service decision tree should remain attached to the record so the conclusion is auditable.

Honda fitment release checklist for a buyer

When a distributor requests Civic, Accord, CR-V or Pilot coverage, return a row-level application file rather than a paragraph claiming broad Honda fitment. Each released row should preserve engine, market, emissions and position fields and cite its source. Sunhyings can assess an exact request, while availability and fitment remain unconfirmed until that evidence is reviewed.

Composite Honda verification scenario

Composite engineering scenario: an Accord search is submitted with year and model only. Catalog results include different powertrains and upstream terminology, while the user calls every position an O2 sensor. The reviewer pauses the order, resolves vehicle and position identity, and then follows the correct circuit test. This scenario combines common catalog and diagnostic risks; it is not a Sunhyings customer case, fitment record or claim about a particular vehicle.

Composite Honda diagnostic scenario

Composite diagnostic scenario: A Civic has a heater-circuit code for the primary sensor and an aftermarket listing recommends a visually similar four-wire part. Before ordering, the technician confirms that Honda information identifies the circuit as a primary A/F sensor, checks power, control and connector condition, and rejects the candidate because its application record and electrical strategy are not established. The code directed the circuit test; it did not validate the catalog listing.

The sequence is intentionally evidence-led: confirm the exact circuit, test the vehicle-side causes and compare the response with the applicable procedure before approving a part. It is a composite training example, not a Sunhyings customer, warranty result or statement that the named model commonly has this fault.

Verify the repair and monitor

After repair, confirm connector lock, lead routing, heat clearance and exhaust sealing. Check the heater/circuit and technology-specific sensor response under defined conditions. Complete the applicable legal readiness monitor. A warning light that was cleared manually is not evidence that the original monitor passed; permanent codes may remain until the control module confirms a successful result.

Emissions and product-claim boundary

Do not use spacers, defoulers, simulators, sensor deletes or software changes to conceal catalyst monitoring. These methods do not repair the root cause and may violate emissions law. This educational page does not confirm that Sunhyings sells, stocks, manufactures or guarantees a sensor for any Honda application. Fitment remains Pending until project-specific evidence is matched.
