Oxygen Sensor Technical Guide
Compare upstream and downstream oxygen sensor location, function, scan data and buying requirements without confusing Sensor 1 and Sensor 2.
Quick answer

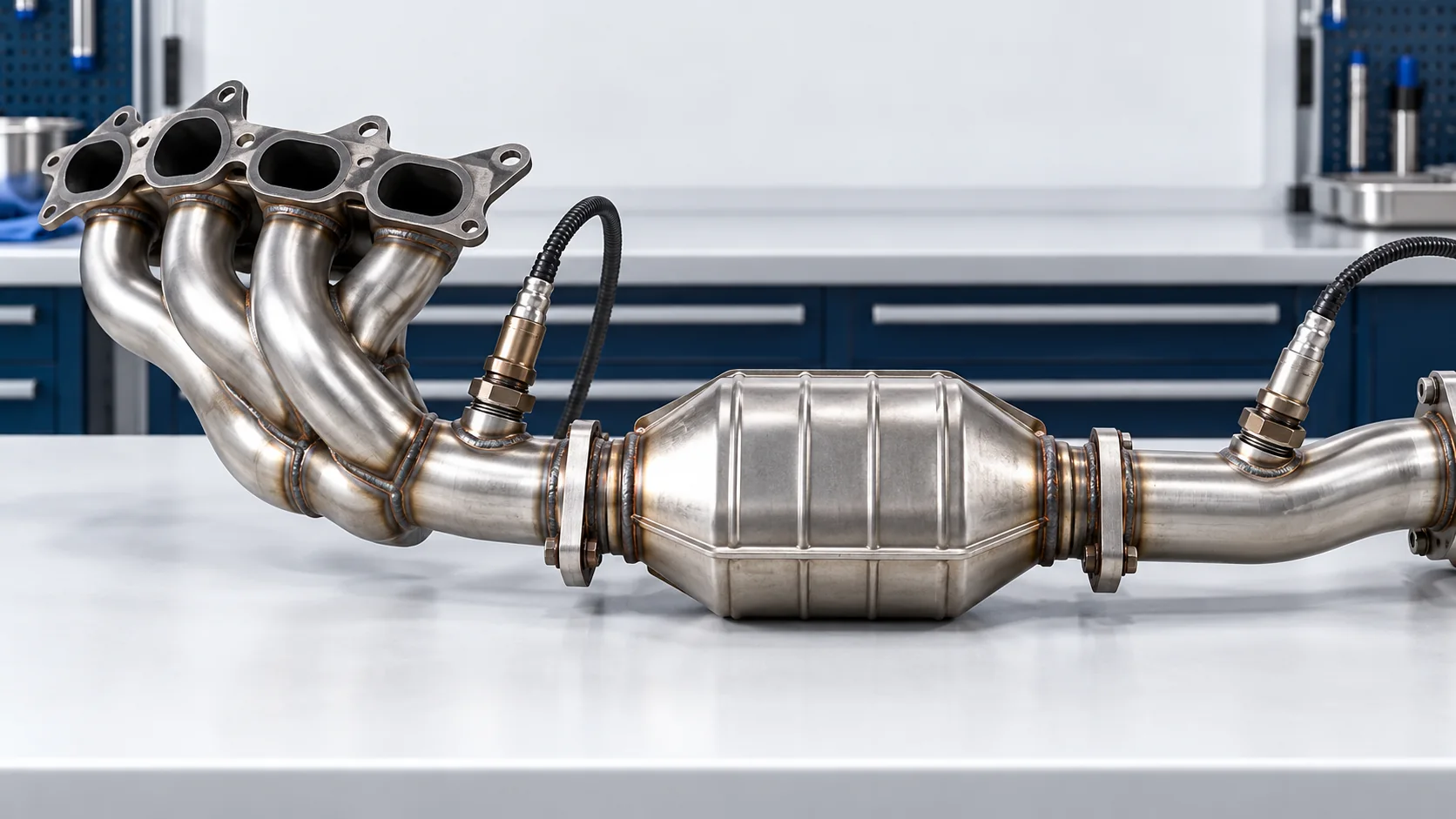

An upstream oxygen sensor is installed before the catalytic converter and commonly supports fuel-control feedback. A downstream sensor is installed after the converter and commonly supports catalyst monitoring. Upstream usually means Sensor 1 and downstream usually means Sensor 2, but the exact bank, position and part must be confirmed from vehicle service or fitment data.

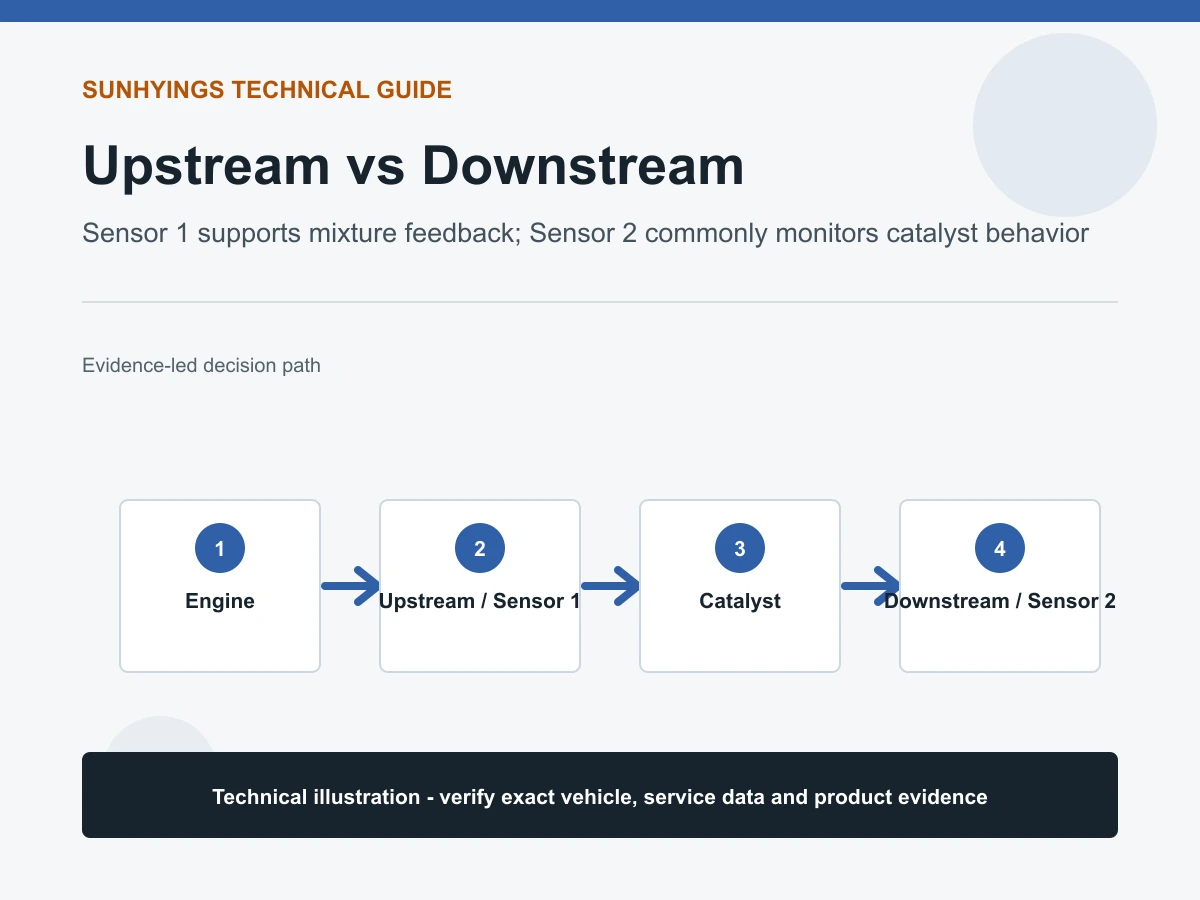

Upstream and downstream at a glance
| Question | Upstream sensor | Downstream sensor |
|---|---|---|
| Typical location | Before the catalytic converter | After the catalytic converter |
| Common position name | Sensor 1 / pre-cat / front | Sensor 2 / post-cat / rear |
| Primary strategy | Mixture feedback and fuel control | Catalyst-monitor feedback |
| Expected data | Depends strongly on narrowband or wideband technology | Often steadier than the front sensor when the catalyst is operating, but vehicle strategy varies |
| Buying risk | Wrong calibration, connector or bank | Wrong cable length, routing, connector or position |
Front, rear, Bank and Sensor naming
“Front” and “rear” can become ambiguous on transverse engines or systems with several catalysts. Use Bank and Sensor identification where available. Bank 1 contains cylinder 1. Sensor 1 is the sensor upstream of the catalyst for that bank; Sensor 2 is downstream. Some vehicles have additional sensors or different terminology, so service information remains authoritative.
Why scan data should look different
A conventional narrowband upstream sensor may switch rich and lean during closed-loop operation. A wideband sensor is represented differently and may be shown as current, lambda or commanded equivalence. A downstream signal is interpreted in relation to catalyst operation. Comparing two graphs without first identifying technology and operating conditions can create a false diagnosis.
Codes that mention a position
A position-specific code narrows the circuit to inspect; it does not prove that the sensing element is defective. Check the connector and harness, heater power and ground, exhaust leakage and operating data. P0420 or P0430 should not be treated as an instruction to replace the downstream sensor.
Can upstream and downstream sensors be interchanged?
Do not assume interchangeability. Two sensors may share thread size or connector appearance but differ in technology, calibration, cable length, protective shield or connector keying. Match the OE reference and the exact vehicle, engine, market/emissions package, bank and position.

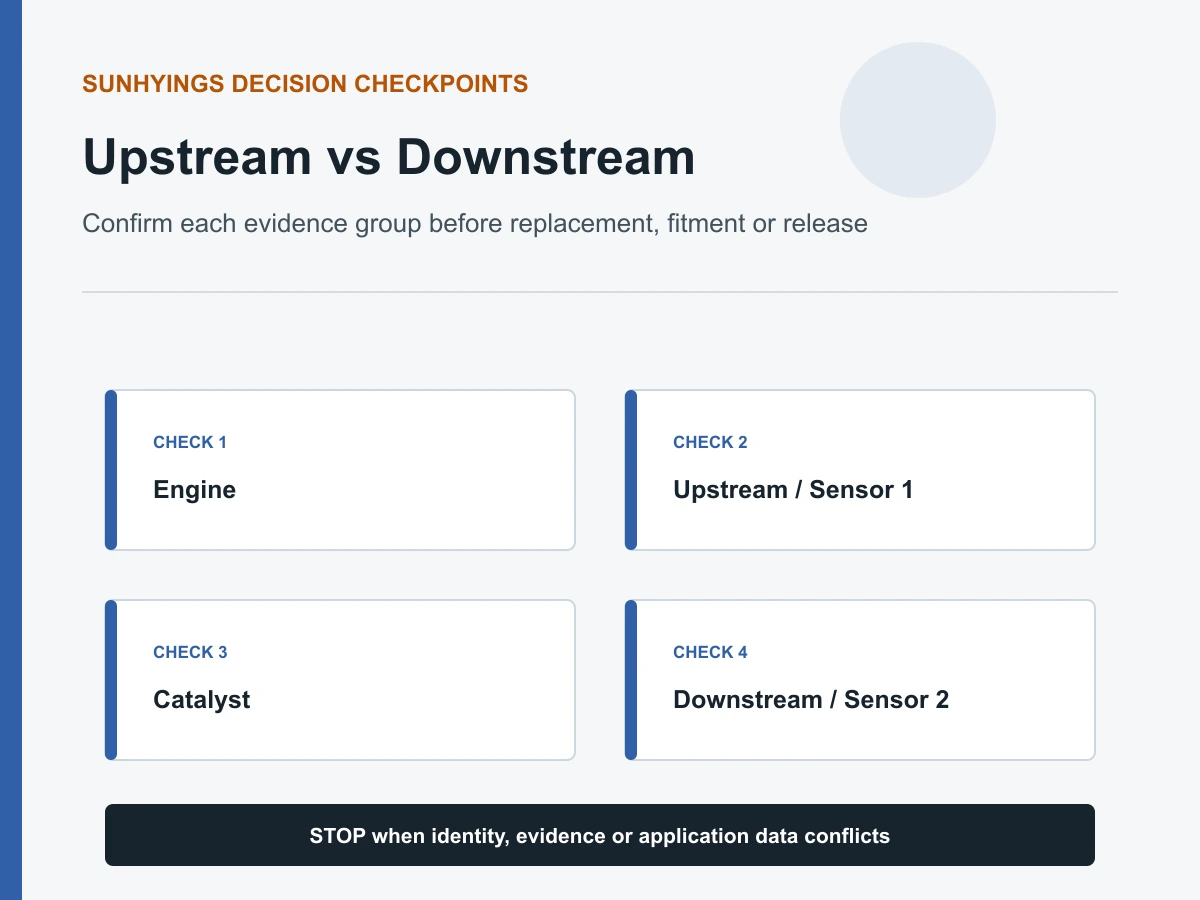

Position verification checklist
- Read the complete code description and freeze-frame data.
- Identify cylinder 1 and Bank 1 from service information.
- Trace exhaust flow to distinguish pre-cat and post-cat positions.
- Compare the connector, cable length and routing clips.
- Confirm the OE reference and sensor technology before ordering.
Position identity comes before signal interpretation
Upstream and downstream describe location relative to a catalyst, not a universal physical direction on the vehicle. On a two-bank engine, each bank can have its own Sensor 1 and Sensor 2. Some exhaust systems add more catalysts or sensors. Confirm cylinder numbering, trace the exhaust path and match the code or data identifier to the physical connector before testing.
| Identity input | Upstream decision | Downstream decision |
|---|---|---|
| Cylinder and bank | Locate Sensor 1 on the bank containing the named cylinders | Locate Sensor 2 after that bank’s monitored catalyst |
| Exhaust flow | Before the relevant catalyst | After the relevant catalyst |
| Catalog data | Must list exact bank/position and technology | Must list exact position, lead routing and connector |
| Service diagram | Confirms physical connector and harness route | Prevents confusion with additional post-catalyst sensors |
How their control roles differ
Upstream feedback
After enable conditions are met, the control module uses upstream feedback with airflow, load, temperature and other inputs to evaluate mixture. A narrowband sensor may switch around its control point, while a wideband sensor may be represented as current, lambda or equivalence ratio. A lean report can be accurate evidence of unmetered air or low fuel delivery rather than a failed sensor.
Downstream monitoring
The downstream sensor commonly helps the control module evaluate catalyst oxygen-storage behavior. Its signal is interpreted in relation to the upstream signal and defined monitor conditions. A rear sensor is not simply expected to show one fixed voltage, and a catalyst code does not prove that the rear sensor should be replaced.
Strategy exceptions
Manufacturers may use downstream information for additional adaptations or diagnostics. The common roles provide orientation, not permission to generalize one vehicle’s logic to another. Use exact service information for the vehicle, engine, emissions package and calibration.
Compare signals only under valid conditions
| Condition | Upstream observation | Downstream observation | Limitation |
|---|---|---|---|
| Cold start | May not yet provide closed-loop feedback | Catalyst monitor usually not ready | Temperature and enable criteria not met |
| Warm steady operation | Technology-specific mixture response | Evaluated against catalyst behavior | Leaks and fuel faults can distort both |
| Acceleration | Commanded enrichment may change the signal | Response can be delayed by catalyst storage | Not a steady-state comparison |
| Deceleration fuel cut | High exhaust oxygen may be expected | Response depends on catalyst and strategy | Do not label expected behavior a fault |
Use position-specific codes as test paths
Sensor 1 circuit or response codes
Inspect the named bank and upstream circuit, but also evaluate real mixture conditions. Check connector integrity, heater operation, reference or signal ground, exhaust leaks ahead of the sensor and fuel trims. A response test must match narrowband or wideband technology.
Sensor 2 circuit or heater codes
Confirm the post-catalyst connector and harness, which may be exposed to underbody heat, water and impact. Test supply, control and signal circuits as specified. Do not substitute a catalyst-efficiency diagnosis for a direct circuit test.
P0420 and P0430
These codes concern catalyst-system efficiency. Confirm there is no active misfire, mixture fault or exhaust leak, validate both sensor signals and follow the catalyst procedure. Replacing the downstream sensor is justified only when its own evidence shows it cannot report correctly.
Why matching threads do not make positions interchangeable
Upstream and downstream sensors may differ in sensing technology, calibration, heater characteristics, protective shield, connector pin assignment, cable length and clips. Even when one part physically screws into both bungs, the control module may expect a different electrical system. Do not extend, force or cut a direct-fit harness to make the wrong position reach.
| Comparison item | Evidence required | Reject when |
|---|---|---|
| OE reference | Current application record for exact position | Cross-reference is unverified or for another emissions variant |
| Technology | Narrowband, wideband/A/F or specified design | Listing relies only on wire count |
| Connector | Keying, latch and circuit assignment | Housing is forced or pins differ |
| Lead and clips | Correct length and heat-safe routing | Cable must be stretched or left near moving/hot parts |
Composite scenario: a rear code is diagnosed at the front connector
Composite engineering scenario: a technician follows a generic “rear sensor” label on a transverse engine and tests the wrong connector. The service exhaust diagram shows that the named Bank 1 Sensor 2 connector routes to a different side of the engine bay. Correct position identification changes the circuit result and prevents replacement of a functioning sensor. This is a composite teaching scenario, not a Sunhyings customer case.
Record the position before ordering
Capture the complete code description, engine identity, market/emissions package, cylinder 1 location, bank, sensor number, catalyst relationship, OE number, connector face and cable route. A photo should show context as well as the plug. This record lets a seller or repairer verify the exact position without turning “front” or “rear” into a fitment claim.
Verify the repair without forcing a conclusion
After a circuit, sensor, exhaust or engine repair, check the physical installation first. Confirm that the correct connector is locked, the cable is clipped away from heat and movement and no exhaust leak is present. Then observe the correct upstream or downstream data identifier under the operating conditions specified by the manufacturer. The signals should be interpreted together with fuel trims, commanded state and monitor status.
A downstream waveform that becomes steadier is not by itself proof that a catalyst is healthy, just as an upstream waveform that changes is not proof that the sensor is calibrated correctly. The monitor must run under valid conditions and the original fault must not return. Permanent codes may remain until the module observes a passing monitor; repeatedly clearing memory can delay rather than accelerate confirmation.
When both positions show unusual data
When upstream and downstream readings both appear abnormal, look for causes that affect the entire exhaust path: misfire, incorrect fuel delivery, exhaust leakage, temperature problems or unsupported scan-tool parameters. Replacing both sensors together may remove useful evidence and still leave the shared root cause.
When only one position has an electrical fault
A position-specific open, short or heater fault should be traced with the correct wiring diagram. Check shared supplies without assuming that every sensor uses the same fuse or ground. Load-test suspect circuits and protect terminal fit. A code naming one sensor still does not establish that the replaceable element is the failed point.
Upstream and downstream across common exhaust layouts
Upstream means before the catalyst being monitored; downstream means after it. The words do not guarantee that a sensor is physically at the front or rear of the vehicle. Packaging can place a pre-catalyst sensor behind the engine, and some systems use close-coupled catalysts plus additional underfloor catalysts. Trace exhaust flow and use exact service information.
| Layout | Typical upstream identity | Typical downstream identity | Identification risk |
|---|---|---|---|
| Inline engine, one monitored catalyst | Sensor 1 before catalyst | Sensor 2 after catalyst | Additional sensors or catalyst stages can change the count |
| V engine, separate bank catalysts | B1S1 and B2S1 before their bank catalysts | B1S2 and B2S2 after their bank catalysts | Bank 1 is defined by cylinder 1, not a universal side |
| Close-coupled plus underfloor catalyst | Sensor before the relevant monitored catalyst | One or more sensors can follow different catalyst stages | “Rear” may not uniquely identify Sensor 2 or Sensor 3 |
| Single exhaust after two banks merge | Bank-specific sensors may be upstream of merge | A shared downstream sensor may monitor the combined path | Bank naming and physical pipe count do not always match intuition |
| Transverse engine with tight packaging | Can face firewall or radiator depending on cylinder/exhaust layout | May be below catalyst or underbody | Driver/passenger and front/rear shorthand can be wrong |
Control role: mixture feedback versus catalyst monitoring
An upstream sensor commonly provides the fast mixture feedback used after closed-loop enable conditions are met. A downstream sensor commonly contributes to catalyst oxygen-storage monitoring. These are dominant roles, not universal permission to ignore service strategy. Some control systems use downstream information for adaptation or additional diagnostics.
| Decision point | Upstream / pre-catalyst | Downstream / post-catalyst |
|---|---|---|
| Main question | What does exhaust oxygen indicate about mixture feedback? | How does gas behavior after the catalyst compare under monitor conditions? |
| Common technology | Narrowband or wideband/A/F depending on application | Often narrowband, but application evidence controls |
| Response expectation | Technology-specific and generally responsive to mixture changes | Interpreted with catalyst storage and upstream behavior |
| Major confounders | Intake/fuel/ignition faults, pre-sensor leak, circuit and temperature | Upstream faults, catalyst condition, leaks, mixture, circuit and monitor state |
| Replacement error | Ordering by “front” without bank/technology | Replacing because P0420/P0430 is present |
Signal interpretation changes with technology and operating state
A warm zirconia narrowband upstream sensor may switch around its control point during closed-loop correction. A wideband/A/F sensor may be displayed as pump current, lambda, equivalence ratio or a manufacturer-derived value. The two should not be judged by the same voltage pattern. A rear narrowband signal is shaped by catalyst oxygen storage and monitor strategy, so a fixed-voltage myth is also unsafe.
| Operating state | Upstream observation | Downstream observation | Interpretation boundary |
|---|---|---|---|
| Cold start | May not yet provide active feedback | Catalyst monitor normally not ready | Heater and temperature enable conditions matter |
| Warm idle | Mixture feedback may be active | Low flow and small leaks can affect reading | Idle alone is an incomplete system test |
| Steady cruise | Fuel correction and response can be evaluated | Catalyst comparison may be meaningful when enabled | Speed, load and temperature must be stable |
| Acceleration | Commanded enrichment can change the signal | Response may be delayed by catalyst storage | Not a steady-state catalyst comparison |
| Deceleration fuel cut | High exhaust oxygen can be expected | Behavior depends on storage and strategy | Expected event should not be labeled a fault |
Position-specific diagnostic map
| Concern | Upstream test emphasis | Downstream test emphasis | Shared checks |
|---|---|---|---|
| Low/high signal | Actual mixture, fuel trims and reference circuit | Signal circuit, leaks and post-catalyst context | Connector, technology and exact position |
| Slow response | Valid rich/lean stimulus and response specification | Monitor procedure and catalyst influence | Temperature, contamination and scan-data limits |
| Heater code | Protected supply/control and upstream harness route | Underbody harness exposure and shared supply | Loaded testing, pins and specified resistance/current |
| P0420/P0430 | Mixture control and upstream validity | Rear-sensor validity within catalyst path | Misfire, leaks, contamination and catalyst procedure |
| Poor fuel economy | Potential direct effect through biased feedback | Usually not the first fuel-control suspect | Confirm actual fuel use and competing causes |
Why upstream and downstream parts may look similar but remain non-interchangeable
Two sensors can share the same thread and even a similar shell while differing in sensing technology, calibration, heater, connector keying, terminal assignment, lead length, clips and shield. A longer cable is not automatically a safe substitute; unmanaged cable can touch exhaust or moving components. A shorter cable must never be stretched or extended to make the wrong position reach.
| Identity feature | Evidence required | Unsafe shortcut |
|---|---|---|
| OE/application mapping | Current source for exact vehicle, engine and position | One cross-reference copied without revision |
| Technology | Product and vehicle specification | Counting wires |
| Connector/pinout | Key, pins, terminal arrangement and circuit | Connector color or forced fit |
| Lead and clips | Length and approved route for exact position | Extending, cutting or tying excess near heat |
| Shield/thread | Drawing or verified physical specification | Assuming common thread proves interchange |
Composite case: two similar connectors were assigned to the wrong positions
Composite workshop scenario: after exhaust work, a vehicle sets position-specific response codes. Both sensors are present and their connectors can be routed to nearby branches. The technician reconciles wire colors, connector identifiers and service routing and finds the connectors crossed. Restoring the correct physical-to-data mapping resolves the conflict without replacing sensors.
The scenario shows why scan labels, physical position and connector route must agree before data is interpreted. It is a composite pattern, not a Sunhyings customer repair.
Composite case: a downstream sensor was not the automatic answer to P0420
Composite diagnostic scenario: a rear sensor graph appears active and a catalyst code is stored. Before ordering a rear sensor, the workshop finds an exhaust leak ahead of it and abnormal upstream fuel correction. The leak and mixture fault are corrected, exact sensors are verified and the catalyst monitor is rerun. A part decision is deferred until the system can be tested under valid conditions.
This does not promise that repairing a leak will correct every catalyst code. It shows the evidence order required before a downstream sensor or catalyst is condemned.
Position-specific order record
- VIN/YMME, engine and market/emissions configuration
- Cylinder 1 source, bank identity and complete Sensor number
- Position relative to the exact monitored catalyst
- OE reference and controlled cross-reference revision
- Narrowband, titania or wideband/A/F technology
- Connector face, keying, pins, lead length, clips, thread and shield
- Diagnostic evidence that supports replacing that position
Design a response test that answers a position-specific question
Before testing, state the question. For an upstream sensor it may be whether the reported mixture follows a controlled rich/lean change within the vehicle specification. For a downstream sensor it may be whether the circuit is responsive and whether its behavior is plausible during a defined catalyst monitor. The stimulus, expected parameter, time scale and pass limit must match sensor technology and service information.
| Test design field | Upstream example | Downstream example | Invalid shortcut |
|---|---|---|---|
| Operating condition | Warm closed loop at specified speed/load | Catalyst monitor enable conditions | Cold idle screenshot |
| Data channel | Correct voltage/current/lambda item | Named rear-sensor item and upstream reference | Unlabeled generic graph |
| Stimulus | Approved controlled mixture change | Manufacturer monitor or defined response procedure | Random throttle snapping |
| Confounder checks | Leaks, fuel pressure, airflow and trims | Leaks, upstream validity, misfire and catalyst state | Assuming every change comes from sensor |
| Conclusion | Pass/fail against exact specification | Continue circuit/sensor/catalyst path | “Looks slow” without scale or limit |
When a scan tool derives or filters a parameter, document the tool and data label. If the vehicle does not support the needed information, use the OEM test method rather than inventing a universal substitute. Do not introduce fuel or air changes in a way that creates unsafe exhaust temperature or uncontrolled operation.
Position changes thermal and routing exposure
Upstream sensors can see higher and faster-changing exhaust temperature. Downstream sensors often have longer underbody routes exposed to water, road debris and harness movement. These tendencies help plan inspection but do not replace application drawings. Verify heat shields, grommets, clips and connector location for the exact vehicle.
| Exposure | Possible upstream concern | Possible downstream concern | Inspection record |
|---|---|---|---|
| Heat | Manifold/catalyst proximity and rapid cycling | Radiant exhaust heat and missing shields | Full installed route and clearance photos |
| Water/debris | Connector sealing in engine compartment | Underbody impact, salt and water entry | Seal, terminal and loom condition |
| Movement | Engine movement and tight lead | Exhaust movement and long unsupported lead | Strain relief and every clip location |
| Service access | Restricted manifold or shield access | Lift/support and corroded bung access | Access plan and thread condition |
Supplier evidence must preserve position identity
A distributor should not collapse upstream and downstream coverage into one marketing family without controlled part-level records. Each sellable part needs a revision, OE/application mapping, technology, connector and lead specification, validation scope, production controls and traceability. A quality-management certificate can support process-system review only within its named legal entity, site and scope; it does not prove the exact part fits both positions.
| Supplier record | Position question it must answer | Reject or hold signal |
|---|---|---|
| Application table | Which vehicle/engine/emissions/bank/sensor rows are approved? | Model-level list with no position |
| Product drawing | Are connector, lead, clips, thread and shield position-correct? | Generic family photo only |
| Electrical specification | Does technology/heater/circuit match position strategy? | Wire count used as compatibility proof |
| Validation report | Which identified samples and conditions were tested? | Test names with no criteria, results or sample identity |
| Change notice | Will position-critical design/data changes trigger review? | Uncontrolled connector, cable or catalog substitution |
Return analysis for a suspected upstream/downstream mismatch
Preserve the delivered label and lot, exact vehicle identity, installed position, OE mapping source, old/new comparison and diagnostic results. A complaint that the lead is short or the connector differs can indicate a packing error, catalog error, wrong position or an unrecorded emissions variant. A returning DTC can instead reflect vehicle circuit or root-cause issues. Investigate both product conformity and application accuracy.
Do not alter the direct-fit harness to make a disputed part install. Keep the sensor clean, document connector face and route, and pause until the part record and vehicle evidence agree. This protects the customer and preserves evidence for corrective action.
Upstream/downstream decision tree from complaint to verified repair
- Define the complaint. Record drivability, fuel-use, warning-lamp or inspection concern under repeatable operating conditions.
- Capture system evidence. Read all modules and preserve code status, freeze frame, readiness and related misfire or fuel-control information.
- Name the position. Use engine cylinder numbering and the exhaust diagram to map bank, sensor number, catalyst and physical connector.
- Identify technology. Determine whether the named position is narrowband, titania or wideband/A/F and select supported data and tests.
- Check circuit and context. Inspect loaded heater supply/control, signal/reference integrity, exhaust leaks, trims and competing engine causes.
- Run a valid response test. Meet temperature and control-state requirements and document stimulus, units, time scale and result.
- Separate sensor from catalyst logic. For rear-sensor or P0420/P0430 concerns, prove upstream validity and follow the catalyst path.
- Select the exact part. Match OE/application, position, technology, connector, lead, clips, thread and shield.
- Install without altering the emissions system. Follow safety, torque, thread-treatment and routing instructions; retain all shields.
- Verify the original question. Recheck circuit/response and complete the applicable legal monitor under documented conditions.
If evidence conflicts at any step, stop the parts decision and resolve the conflict. For example, if the catalog says downstream but the connector route reaches the pre-catalyst bung, neither source should be silently preferred. Check the VIN/configuration, catalog revision, removed part and service diagram and record the resolution.
Commercial claims that this comparison does not support
This guide does not establish that Sunhyings stocks every upstream or downstream sensor, that one part fits all positions, or that replacing a sensor will reduce emissions or fuel use by a fixed percentage. It does not publish unverified OE numbers, torque values, prices, MOQ, lead times or approvals. Those details require a part-specific quotation and evidence review.
The valid commercial invitation is to submit a controlled application and product request. Buyers should include sales market, OE/part list, YMME/engine/emissions and position data, expected quantity, packaging, validation and document requirements. Only confirmed project information should enter a quotation or product page.
For a retail request, the minimum useful submission is smaller but still exact: VIN or full YMME/engine, emissions market, Bank/Sensor position, readable old-part number and connector/lead photos. A trouble code or the words “upstream sensor” cannot substitute for those fitment inputs.
Keep the evidence with the order: catalog revision, submitted vehicle data, selected position and comparison photographs. If the delivered connector or lead conflicts with the record, stop before installation and resolve the mapping. This is safer and more useful than modifying a direct-fit part.
Prepare a fitment or sourcing request
Send the OE number, year/make/model, engine or VIN details, market and emissions package, exact bank/sensor position, connector and old-part photos, quantity and any packaging or approval requirements. Sunhyings will review the supplied data for capability and sourcing feasibility; fitment is not confirmed until application evidence is matched.
Frequently asked questions
Is Sensor 1 upstream or downstream?
Sensor 1 is usually upstream of the catalytic converter for its bank. Confirm the vehicle service information because system layouts vary.
Is Sensor 2 the rear oxygen sensor?
Sensor 2 is commonly the downstream or post-catalyst sensor, but use the bank and service diagram rather than relying only on front or rear wording.
Can I use an upstream sensor downstream?
Only if the verified catalog or OE cross-reference lists the exact part for both positions. Similar appearance does not establish interchangeability.
Does a downstream sensor control fuel?
Its main role is commonly catalyst monitoring, although control strategies vary. Do not generalize one vehicle’s logic to all vehicles.
Does P0420 mean the downstream sensor failed?
No. P0420 concerns catalyst-system efficiency. Diagnose sensor data, exhaust integrity and catalyst operation before replacing parts.
