Selecting and installing the right pneumatic fittings in 2025 requires careful attention to quality, compatibility, and application needs. You need to choose robust fittings that guarantee secure, leak-free performance. High-quality options like Sunhy’s stainless steel fittings resist corrosion, extend lifespan, and help maintain system safety. The market for pneumatic fittings continues to grow rapidly:
- The global pneumatic fitting market is projected to reach USD 11.8 billion by 2033.
- Growth rates remain steady, with a CAGR of over 5% from 2025 onward.
Use this guide to make informed choices for both new pneumatic projects and system upgrades.
Understanding Pneumatic Fittings
What Are Pneumatic Fittings
Pneumatic fittings connect and control the flow of air in a pneumatic system. You use these components to join tubes, hoses, and other parts, making sure air moves efficiently and safely. Pneumatic fittings come in many shapes and sizes, each designed for a specific function in automation and manufacturing.
Here is a quick overview of common fitting types and their uses:
| Type of Fitting | Function | Applications |
|---|---|---|
| Straight | Connects two sections of hose in a straight line | Extending hose lines, connecting to actuators, reconnecting damaged hoses |
| Elbow | Directs airflow around obstacles | Making turns in air paths, connecting hoses at right angles |
| Tee (T) | Divides or combines airflow | Dividing airflow from one source, creating tapping points for gauges |
You will find a wide range of options that boost productivity and offer flexibility for different applications. Many pneumatic fittings use O-rings to create secure, leak-free connections. Most modern fittings do not require sealants, which helps reduce contamination risks in your pneumatic system. These fittings also comply with industry standards, supporting safety and sustainability in your operations.
Why Proper Selection Matters
Choosing the right pneumatic fittings ensures reliable performance and safety in your pneumatic system. If you select the wrong fitting, you risk leaks, pressure drops, or even system failure. You need to match the fitting type to your application. For example:
- Push-to-connect fittings work best for quick setups and tight spaces.
- Threaded fittings provide a strong seal for high-pressure environments.
- Compression fittings deliver airtight connections for control systems.
- Barbed fittings suit light-duty tasks.
- Quick-disconnect couplings allow fast tool changes without stopping the system.
When you select fittings that fit your needs, you keep your pneumatics running smoothly and avoid costly downtime. Proper selection also helps you meet safety standards and extend the life of your equipment.
Tip: Always check the compatibility of your fittings with the tubing and the operating conditions of your pneumatic system.
Types of Pneumatic Fittings
You need to understand the main types of pneumatic fittings to choose the right solution for your system. Each type offers unique benefits and works best in specific situations.
Push-to-Connect

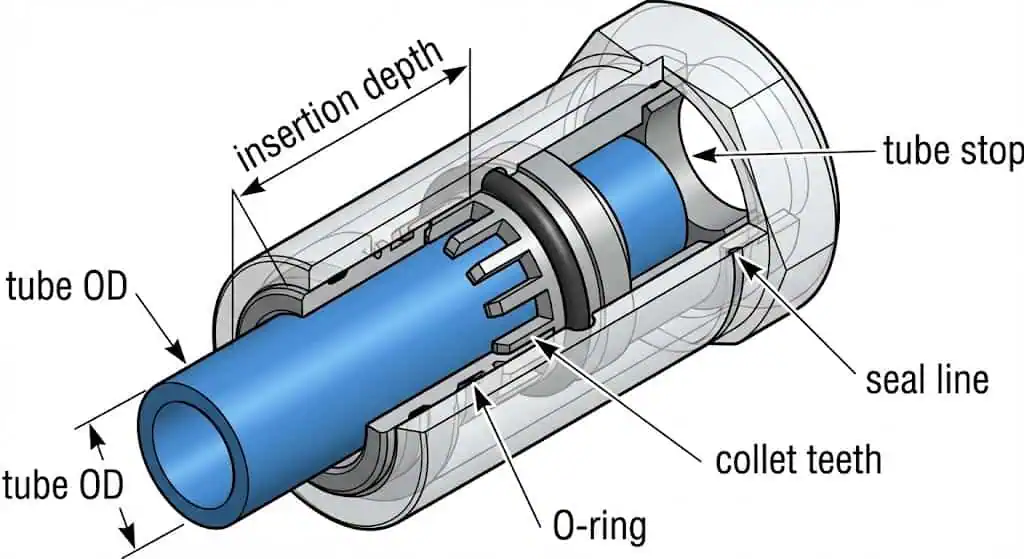

Push-to-connect fittings provide the fastest and easiest installation. You simply push the tubing into the fitting for a secure connection. These fittings are reusable and require no tools. You often use them in tight spaces or when you need to assemble and disassemble lines quickly.
- Tool-free assembly saves time.
- Flexible and reusable for frequent changes.
- Ideal for low-pressure applications and air brake lines.
Tip: Push-to-connect fittings work well with stiffer hoses and allow you to make quick repairs.
Compression
Compression fittings deliver a strong, pressure-resistant seal. You use them for permanent or long-term installations. These fittings use a ferrule to compress the tubing, creating a tight, leak-free connection.
- Durable and reliable for high-pressure systems.
- Designed for long-term use.
- Common in control panels and instrumentation.
| Fitting Type | Key Features | Suitability |
|---|---|---|
| Push-to-Connect | Tool-free, reusable, flexible | Quick assembly/disassembly |
| Compression | Durable, pressure-resistant, long-term install | Permanent installations |
Barbed
Barbed fittings create a secure seal with soft tubing. You push the tubing over the barbed end, which grips the inside for a tight fit. These fittings are cost-effective and work best in low-leak environments.
- Better seal, but harder to disconnect.
- Lower cost than push-to-connect.
- Best for soft tubing and low-pressure uses.
Threaded
Threaded fittings offer a strong, leak-proof connection for high-pressure systems. You screw these fittings into place, often using sealant or tape for extra security. You find them in industrial and automation settings.
- Suitable for high-pressure and vibration-prone areas.
- Compatible with many types of pneumatic fittings.
- Used for connecting pneumatic elbow fittings, pneumatic t fittings, and pneumatic straight fittings.
Quick-Disconnect
Quick-disconnect fittings let you connect or disconnect lines instantly. You use them when you need to change tools or equipment without shutting down the system. These fittings save time and reduce downtime.
- Fast tool changes.
- Reliable seal for frequent use.
- Common in assembly lines and maintenance.
Note: You can use quick-connect fittings with pneumatic t fittings and pneumatic y fittings for flexible system layouts.
You will often combine different types of pneumatic fittings, such as pneumatic elbow fittings and pneumatic t fittings, to build complex systems. Understanding the types of pneumatic fittings helps you select the best fittings for your needs.
Pneumatic Fitting Selection Guide
Assessing Application Needs
You must evaluate your application needs before choosing pneumatic fittings. This step ensures you select the right components for your pneumatic system and avoid costly mistakes. Consider these factors:
- Application environment (indoor, outdoor, exposure to chemicals or moisture)
- Pneumatic tubing type and material
- Required flow rate for optimal flow rates
- Pressure requirements for your system
- Fitting size and dimensions
- Special features such as quick-disconnect or swivel options
- Budget considerations
- Approvals or certifications needed for your industry
- Static or swivel fitting requirements
Tip: Always match the fitting to your pneumatic tubing and system environment for the best performance.

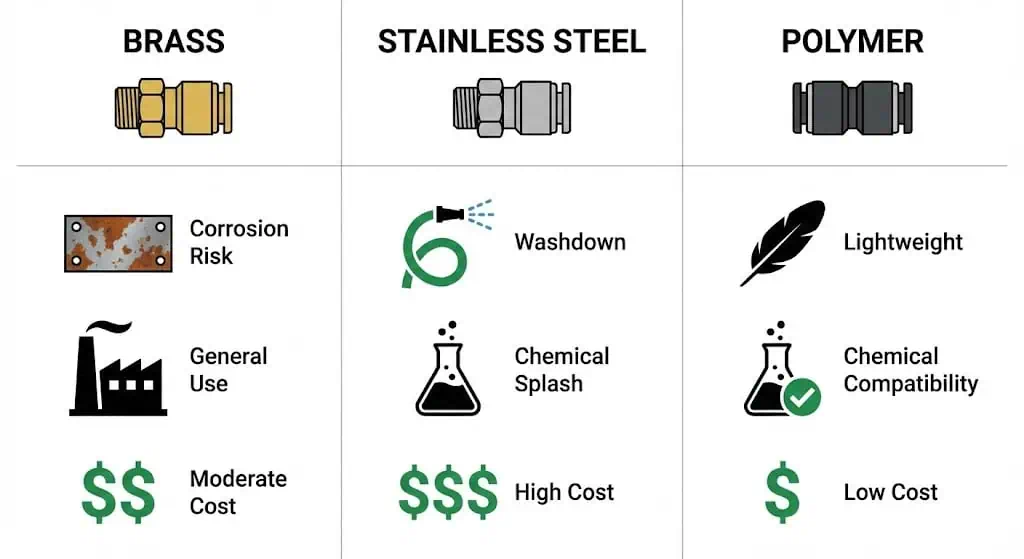

Material Selection for Performance
Selecting the right material for pneumatic fittings impacts durability and safety. Each material offers unique benefits for different applications. Use the table below to compare common materials:
| Material | Key Properties | Applications |
|---|---|---|
| Brass | Corrosion resistance, durable, cost-effective, -20°C to 80°C | Air/water systems, general industrial |
| Stainless Steel | Superior strength, chemical resistance, -65°C to 260°C | Food, pharmaceutical, chemical, high-pressure systems |
| Fluoropolymer | Exceptional chemical resistance, up to 200°C+ | Semiconductor, analytical, pharmaceutical |
| Polyurethane | Flexible, abrasion resistant, strong | Automation, automotive, packaging |
| Nylon | Lightweight, high tensile strength, abrasion resistant | Aerospace, material handling, textile |
| Polyethylene | Flexible, chemical resistant, low cost | Various environments, efficient airflow |
Sunhy’s stainless steel fittings stand out for high-pressure systems, corrosion resistance, and zero-leak performance. These fittings work well in harsh environments, including oil and gas, chemical processing, and food industries. Sunhy’s products meet ISO, ASTM, and PED certifications, ensuring quality and safety.
Note: Match the fitting material to your application environment. Stainless steel offers strength and hygiene for demanding pneumatics.
Sizing and Compatibility
Proper sizing and compatibility ensure safe, efficient pneumatic fitting connections. Incorrect sizing can cause leaks, pressure drops, or reduced efficiency. Follow this sizing guide:
- Select pneumatic tubing size first, based on your system’s flow and pressure needs.
- Choose fittings that match the tubing’s outer diameter (OD) for secure connections.
- Consider the inner diameter (ID) of the tubing, as it affects airflow and pressure drop.
- Ensure compatibility between tubing and fittings to prevent leaks and maintain system safety.
- Double-check that fittings match the pipe’s diameter and thread type.
Practical Tip: Consult with experts or reputable suppliers like Sunhy to confirm sizing and compatibility for your pneumatics.

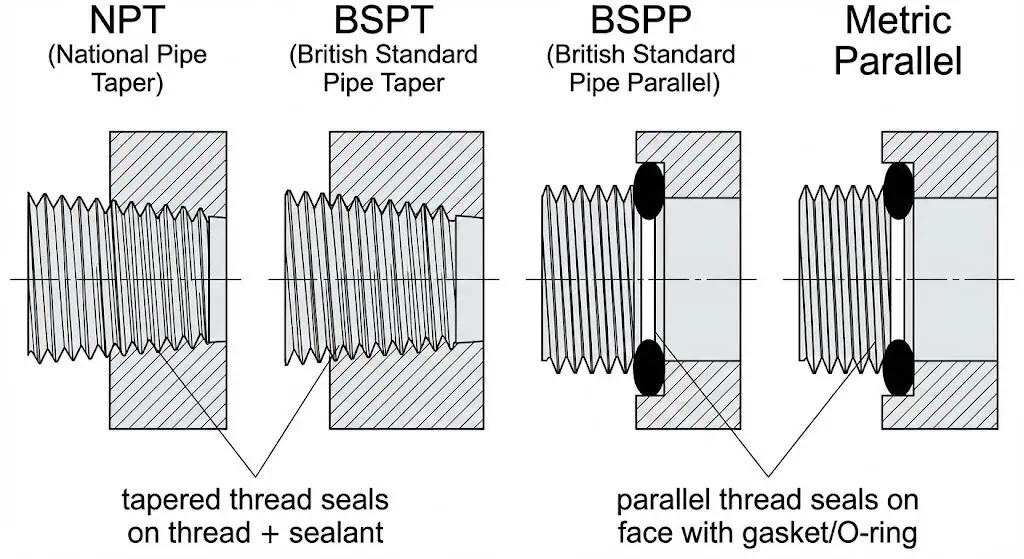

Thread Type and Standards
Thread type and standards affect system compatibility and leak prevention. You must select fittings with threads that match your pneumatic tubing and system requirements. Here is a quick reference table:
| Thread Type | Characteristics | Applications |
|---|---|---|
| NPT | Tapered, 60° angle, needs sealants | Plumbing, pneumatic, automotive, industrial |
| BSP | BSPT/BSPP, 55° angle, needs sealants or washers | Plumbing, pneumatic, hydraulic |
| Metric | ISO standardized, measured in mm, coarse/fine threads | Automotive, aerospace, manufacturing |
| UN/UNF | 60° angle, ANSI/ASME standard, coarse/fine series | General fastening, automotive, aerospace |
Tip: Always verify thread type and standard before installation to ensure compatibility and prevent leaks in your pneumatic system.
Pressure and Temperature Ratings
You must select pneumatic fittings with pressure and temperature ratings that match your application. Each fitting has a maximum pressure rating, measured in PSI, and a temperature range for safe operation. Using fittings outside these limits can cause leaks or system failure.
For high-demand or high-pressure systems, choose fittings rated for your maximum operating pressure and temperature. Sunhy’s stainless steel fittings handle extreme pressures and temperatures, making them ideal for critical pneumatics.
Checklist:
- Check manufacturer’s pressure and temperature ratings before purchase.
- Ensure material compatibility for heat and pressure.
- Plan for future expansions by considering higher ratings if needed.
Summary:
Use this selection guide to match pneumatic fittings to your application, material, size, thread, and pressure needs. Sunhy’s stainless steel fittings provide reliable performance for demanding environments, ensuring your pneumatics operate safely and efficiently.
Installation Best Practices
Preparation and Tools
Proper preparation ensures accurate and safe installation of pneumatic fittings. You need to identify the correct fitting type and size before starting. Follow these steps to prepare for a successful installation:
- Determine the fitting gender: Check if you need a male or female fitting.
- Check thread type: Identify if the threads are straight (parallel) or tapered.
- Measure thread pitch: Use a pitch gauge to find the correct thread pitch.
- Measure thread diameter: Use a caliper or fine ruler for precise measurement.
- Confirm fitting size: Match the fitting size to your pneumatic tubing.
You should gather the right tools for the job. The most useful tools include:
- Caliper
- Fine ruler
- Dedicated pitch gauge
Tip: Always double-check your measurements to avoid mismatched fittings and leaks.
Assembly Techniques
Correct assembly techniques help you achieve leak-free connections and extend the life of your pneumatic system. Start by selecting high-quality hoses and fittings from trusted brands like Sunhy. Their fittings offer ease of installation with features such as push-to-connect designs and built-in O-rings, which simplify the process and ensure zero-leak performance.
Follow these best practices for assembly:
- Select quality hoses and fittings to prevent leaks.
- Store hoses indoors and protect them from UV exposure.
- Inspect all components before assembly to catch any damage.
- Secure fittings and couplings tightly, but do not overtighten.
- Use protective covers to minimize abrasion on hoses.
- Maintain proper air pressure with regulators.
- Avoid sharp bends and kinks in hoses.
- Replace damaged hoses or fittings immediately.
- Train all users on proper handling and maintenance.
| Feature | Benefit for Installation and Performance |
|---|---|
| Quick installation | Reduces downtime and makes setup easy |
| Push-to-connect designs | Simplifies connections for faster assembly |
| Proper sealing techniques | Ensures leak-free connections |
| Built-in O-rings | Adds extra sealing to prevent leaks |
| Durable materials | Increases longevity and resists corrosion |
Note: Always follow the manufacturer’s guidelines for assembly to ensure safe and reliable pneumatic fittings.
Leak Testing
Leak testing is essential to confirm the integrity of your pneumatic fittings after installation. You can prevent costly downtime and safety hazards by detecting leaks early. Use this step-by-step process for effective leak testing:
- Establish an exclusion zone with clear signs before pressurizing the system.
- Use clean, dry air or nitrogen as the test media.
- Gradually increase the pressure, checking for leaks at each stage.
- Hold the pressure at the design level for the required test duration.
- Apply a proprietary leak detection solution to all joints and mark any leaks for repair.
Alert: Never use flammable substances for leak testing in a pneumatic system.
Common Installation Mistakes
Avoiding common mistakes during installation helps you maintain a safe and efficient pneumatic system. The most frequent errors include:
- Over-tightening or under-tightening fittings, which can cause leaks or damage.
- Using damaged or worn fittings, increasing the risk of system failure.
- Failing to seal fittings properly, leading to leaks.
Tip: Inspect all pneumatic fittings before installation and use the correct sealing method for each type.
Summary Table: Manufacturer Guidelines for Safe Installation
| Consideration | Description |
|---|---|
| System Requirements | Match pressure, flow rate, and cycle frequency |
| Environment | Check temperature, chemical exposure, and vibration |
| Maintenance Needs | Plan for accessibility and disconnection frequency |
| Compatibility | Ensure fit with existing equipment |
| Budget | Balance initial cost with long-term reliability |
By following these best practices, you can achieve reliable, leak-free connections and maximize the performance of your pneumatics. Sunhy’s fittings make the process easier with user-friendly designs and proven zero-leak performance.
Maintenance and Troubleshooting
Inspecting for Leaks
You should inspect pneumatic fittings regularly to prevent leaks and maintain system safety.
Follow these steps to check for air leaks and keep your pneumatics running smoothly:
- Examine all pneumatic hoses, connectors, and fittings for looseness, cracks, or breaks.
- Listen for hissing sounds, which often signal air leaks.
- Replace any damaged or worn hoses before starting the system.
- Use an Ultrasonic Acoustic Detector to find high-frequency sounds from air leaks.
- Check fittings during routine maintenance to catch leaks early.
Tip: Early detection of leaks helps you avoid costly repairs and downtime.
Cleaning and Upkeep
Proper cleaning and upkeep extend the life of your pneumatic fittings and prevent system failures.
Use these best practices to keep your fittings in top condition:
- Wipe down tools and fittings to remove dust and debris.
- Use compressed air to clean hard-to-reach areas.
- Drain the compressor tank daily and use dryers in humid environments to manage moisture.
- Lubricate pneumatic tools with air tool oil before each use.
- Inspect hoses and fittings for cracks, kinks, and leaks.
- Maintain correct pressure for your pneumatic tools.
- Store tools and fittings in a clean, dry place.
- Install and replace air filters regularly to keep contaminants out.
- Service tools at least once a year and replace worn parts as needed.
| Action | Schedule |
|---|---|
| Drain air line filters | Weekly or as needed |
| Check for and seal air leaks | Every four weeks or more often |
| Externally clean components | Every four weeks |
| Replace air filters | Every six months |
Note: Good upkeep reduces the risk of leaks and keeps your pneumatic system efficient.
When to Replace Fittings
You need to replace pneumatic fittings when you see signs of wear, leaks, or damage.
Look for these warning signs:
- Visible cracks, corrosion, or bursts in fittings or piping
- Persistent leaks or air flow issues
- Rust particles or contamination in the air system
- Rising energy bills without increased production
- Frequent repairs or higher maintenance costs
Alert: Replacing worn or damaged fittings is key to preventing leaks and keeping your pneumatics safe and reliable.
Troubleshooting Tip:
If you notice problems, isolate the affected area, check for leaks with soapy water, verify pressure levels, and replace any faulty components. This approach helps you maintain system integrity and avoid unexpected failures.
You can maximize system efficiency and safety by following these essential steps for pneumatic fitting selection and installation:
- Material selection: Match fittings to your environment and application.
- Sizing: Ensure fittings fit the tubing’s outer diameter.
- Pressure ratings: Choose fittings that handle your system’s maximum pressure.
- Selection checklist: Review system needs, compatibility, and maintenance.
High-quality pneumatic fittings, such as Sunhy’s stainless steel options, offer corrosion resistance, strength, and leak-proof performance.
Before starting any pneumatic project, use a selection checklist:
- Inspect hoses and couplings
- Confirm safety features and PPE
- Check for sharp edges
- Ensure proper equipment and clear access
For complex needs, you can access Sunhy’s technical support, custom fabrication, and educational resources.
FAQ
What are the main benefits of using stainless steel pneumatic fittings?
You get high corrosion resistance, long service life, and zero-leak performance.
Stainless steel pneumatic fittings work well in harsh environments. You can use them in industries like oil and gas, chemical processing, and food production.
How do you choose the right fittings for your pneumatic system?
You should match the fitting material, size, and pressure rating to your application.
Check compatibility with your tubing. Review manufacturer guidelines.
Tip: Make a checklist before you buy.
How often should you inspect pneumatic fittings for leaks?
You should inspect fittings at least once a month.
Look for signs of wear, cracks, or air leaks. Use an ultrasonic detector or soapy water for testing.
- Early detection prevents downtime
- Regular checks improve safety
Can you reuse fittings after disassembly?
You can reuse some fittings, like push-to-connect or threaded types, if they show no damage.
Always inspect for wear or deformation before reinstalling.
| Fitting Type | Reusable? |
|---|---|
| Push-to-Connect | Yes |
| Compression | Sometimes |
| Barbed | No |
| Threaded | Yes |
What should you do if you find a leak in your pneumatic system?
You should isolate the area, depressurize the system, and replace the faulty fitting.
Check for proper installation and use leak detection fluid to confirm repairs.
Safety Tip: Always wear protective equipment during repairs.
