Guia do Sensor de Oxigênio Chevrolet: Diagnóstico e Verificações de Ajuste

Guia Técnico do Sensor de Oxigênio

A Chevrolet oxygen sensor replacement guide focused on diagnosis, exact vehicle and engine identity, sensor position, fitment evidence and safe verification.

Autor: Sunhy · Revisão técnica: Equipe de conteúdo Sunhyings · Última atualização em 28 de julho de 2026

What this Chevrolet guide can and cannot confirm

This is a neutral diagnostic and fitment-verification guide. It does not publish an unverified Chevrolet OE number, model-year application, sensor count, labor time or torque value. Sunhyings inventory, manufacture and approved fitment are not claimed. Exact service information and current application data for the VIN/configuration control the repair.

Popular Chevrolet model names are not complete fitment identities

Construa a identidade do veículo e do sensor

• Contexto do VIN e ano/modelo/versão exatos
• Cilindrada/código do motor e tipo de combustível quando aplicável
• Mercado de vendas e etiqueta/ configuração de emissões
• Banco 1 ou Banco 2 e Sensor 1 ou Sensor 2
• Número OE de uma fonte verificada ou etiqueta legível da peça antiga
• Tecnologia do sensor, chaveamento do conector, pinos, cabo e clipes

Diagnostique antes de pedir

Registre códigos atuais, pendentes e permanentes, quadro congelado e prontidão. Inspecione o roteamento do chicote, terminais e vazamentos de escape. Teste alimentação/terra/controle do aquecedor para códigos de aquecedor. Compare ajustes de combustível e resposta do sensor específica da tecnologia para códigos de mistura ou resposta. Códigos P0420/P0430 indicam eficiência do sistema catalisador e não são um pedido automático de sensor traseiro.

Limite seguro de instalação

Let the exhaust cool and use approved vehicle support. Follow the exact Chevrolet service procedure and replacement-sensor instructions for access, torque and thread compound. Do not cut a direct-fit harness. Route the lead away from heat, sharp edges and moving parts, and restore every clip and shield.

Verificação pós-reparo

Verifique o conector, roteamento e vedação do escape, depois confirme a resposta do aquecedor/circuito e do sensor sob condições especificadas. Complete o procedimento de monitoramento legal aplicável. Limpar códigos, usar espaçador/simulador ou desabilitar um monitor não prova o reparo.

A Chevrolet verification sequence that avoids model-name guessing

Chevrolet/GM vehicle identification may require engine and RPO/build context in addition to VIN and model year. A Silverado or Tahoe badge can cover several engines; Equinox and Malibu also change powertrains across generations. Preserve the exact emissions label and market.

Questions to answer for common Chevrolet model searches

Uma tabela de família de modelos é uma lista de verificação, não uma lista de aplicação. Ela intencionalmente não contém contagem de sensores, lado, número OE ou faixa de ano. Esses fatos devem vir de informações atuais correspondentes ao veículo exato.

Read Chevrolet terminology in context

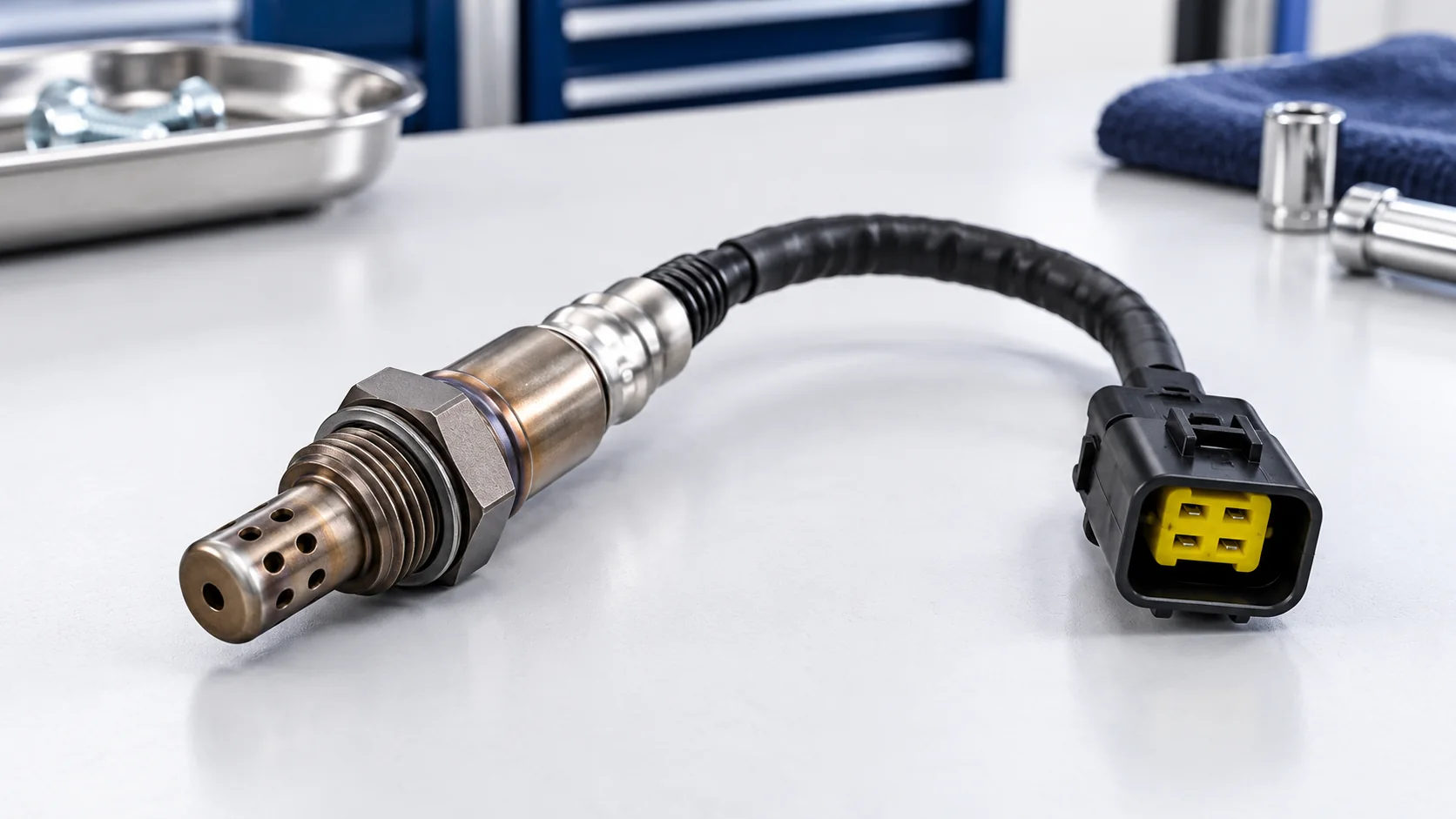

Sensor de oxigênio, sensor de oxigênio aquecido e sensor A/F

Chevrolet/GM data commonly uses HO2S and Bank/Sensor descriptions, while parts listings may shorten them to upstream or downstream O2 sensor. “Oxygen sensor” and “O2 sensor” name the broad family. A/F, wideband and heated labels can imply different circuits or roles, but the complete service description controls. Do not infer technology from the number of wires or from a marketplace title.

Designação de Banco e Sensor

O Banco 1 contém o cilindro 1. O Sensor 1 está geralmente antes do catalisador relevante e o Sensor 2 após ele. Essa nomenclatura comum ajuda a orientar o leitor, mas não fornece um lado físico universal. Confirme a numeração dos cilindros e o fluxo de escape para o motor exato.

Rótulos genéricos de scanner

Um scanner pode exibir tensão HO2S, corrente A/F, lambda ou razão de equivalência. Confirme se o PID é suportado, corresponde ao circuito físico e usa as unidades esperadas. Um menu genérico pode listar posições ou valores que não são implementados para o veículo.

Mapear bancos de motor, catalisadores e conectores

Silverado and Tahoe V-engine configurations require cylinder-1 bank identification, while Equinox and Malibu layouts can use different engine and catalyst arrangements. Do not use a universal left/right rule. Map each exhaust path and follow its connector in the correct wiring diagram.

Considerar variantes de motor, montagem e emissões

RPO and engine information can distinguish components that share a model badge and year. OE numbers can also supersede, so record the source and revision rather than copying a marketplace cross-reference. A visible connector match remains only a physical check.

A registration year or model badge does not necessarily equal production date or VIN breakpoint. Imported vehicles can also differ from the market assumed by a local catalog. Record the under-hood emissions label and use a catalog that explicitly covers the sales market.

Turn Chevrolet codes into test paths, not part orders

Save all current, pending and permanent codes, freeze frame and readiness before clearing. Multiple codes can reveal a shared supply, system-wide mixture fault or misfire. Clearing memory can remove context and reset monitors without repairing anything.

Interpretar dados ao vivo com tecnologia e estado operacional

Confirm warm-up and control state

A cold sensor or engine outside closed-loop conditions should not be compared with a warm response specification. Record coolant temperature, load, speed and commanded state with the sensor value.

Compare response with fuel trims

Positive or negative correction shows what the control module is attempting, not which component failed. Intake leaks, airflow/load error, fuel delivery, purge, ignition and mechanical condition can create the exhaust result a healthy sensor reports.

Use downstream data in catalyst context

The downstream signal is evaluated with upstream behavior and catalyst monitor conditions. A waveform comparison without exhaust sealing, engine condition and valid monitor criteria cannot establish a failed sensor or catalyst.

Construir a identidade de substituição apenas após o diagnóstico

For Chevrolet, submit VIN/build and engine/RPO context, emissions market, complete Bank/Sensor description, OE reference and connector/cable photos. A candidate GM cross-reference must be reconciled with the exact configuration before any fit statement.

Ajuste direto e universal são decisões separadas

A direct-fit sensor supplies an application connector and lead arrangement, but it still needs exact coverage. A universal sensor requires manufacturer-approved circuit compatibility and splice instructions; universal does not mean every Chevrolet vehicle. Wire colors are not a universal pinout standard. Do not cut a direct-fit harness or improvise a splice near the exhaust.

Verificações de instalação e segurança

1. Let the exhaust cool and use approved vehicle lifting/support.
2. Confirm the physical sensor and connector before disconnection.
3. Protect exhaust threads and nearby components during removal.
4. Compare old and replacement technology and interface details.
5. Follow exact product/service torque and thread-compound instructions.
6. Restore heat sleeves, clips, shields and safe cable routing.

There is no responsible universal torque or labor time for every Chevrolet application. Access, corrosion, sensor design and surrounding components vary. Stop when threads, bung, connector or harness damage changes the job scope.

Usar uma hierarquia de evidências quando as fontes discordam

Search results often combine owner discussions, marketplace listings, generic code definitions and application catalogs. They do not have equal authority. Start with exact Chevrolet service information for circuit identity, diagnostic conditions, connector views and installation procedure. Use a current controlled parts source for OE identity and supersession. Use the under-hood label, VIN/build data and the removed part to resolve configuration. Aftermarket catalogs can then be evaluated as cross-references, not treated as proof merely because several sellers repeat the same row.

When two controlled sources conflict, record both values, their dates and the exact vehicle fields used. Do not average the answers or choose the listing with the clearest product photo. Hold the affected application until the conflict is resolved by an authoritative source or a documented physical and electrical comparison.

Monte um pacote de evidências de diagnóstico antes da substituição

A useful record lets another technician understand why replacement was approved. Capture the full DTC description and status, freeze-frame conditions, relevant service-test step, battery/system voltage, heater power and control checks where applicable, harness and terminal condition, intake and exhaust leak findings, fuel trims, misfire evidence and the technology-specific sensor response. Identify the physical connector tested. A graph without vehicle state, units and sensor position cannot be interpreted reliably.

Separate observations from conclusions. “P0135 stored” is an observation. “The heater has specified supply but an open element at the identified connector” is evidence supporting a sensor decision. “The sensor is bad” based only on a code is an unsupported conclusion. The same discipline applies to mixture and catalyst-monitor codes: document the competing causes that were tested and the condition under which the monitor or response failed.

Preserve evidence after the repair

Record the installed part identity and lot if available, connector engagement, cable route, exhaust sealing and post-repair values under comparable conditions. Do not erase the before-state before it is saved. If a concern returns, this packet separates wrong fitment, installation damage, circuit recurrence, unresolved engine faults and possible product nonconformity. It also gives a supplier enough information to investigate without assuming every warning light is a warranty defect.

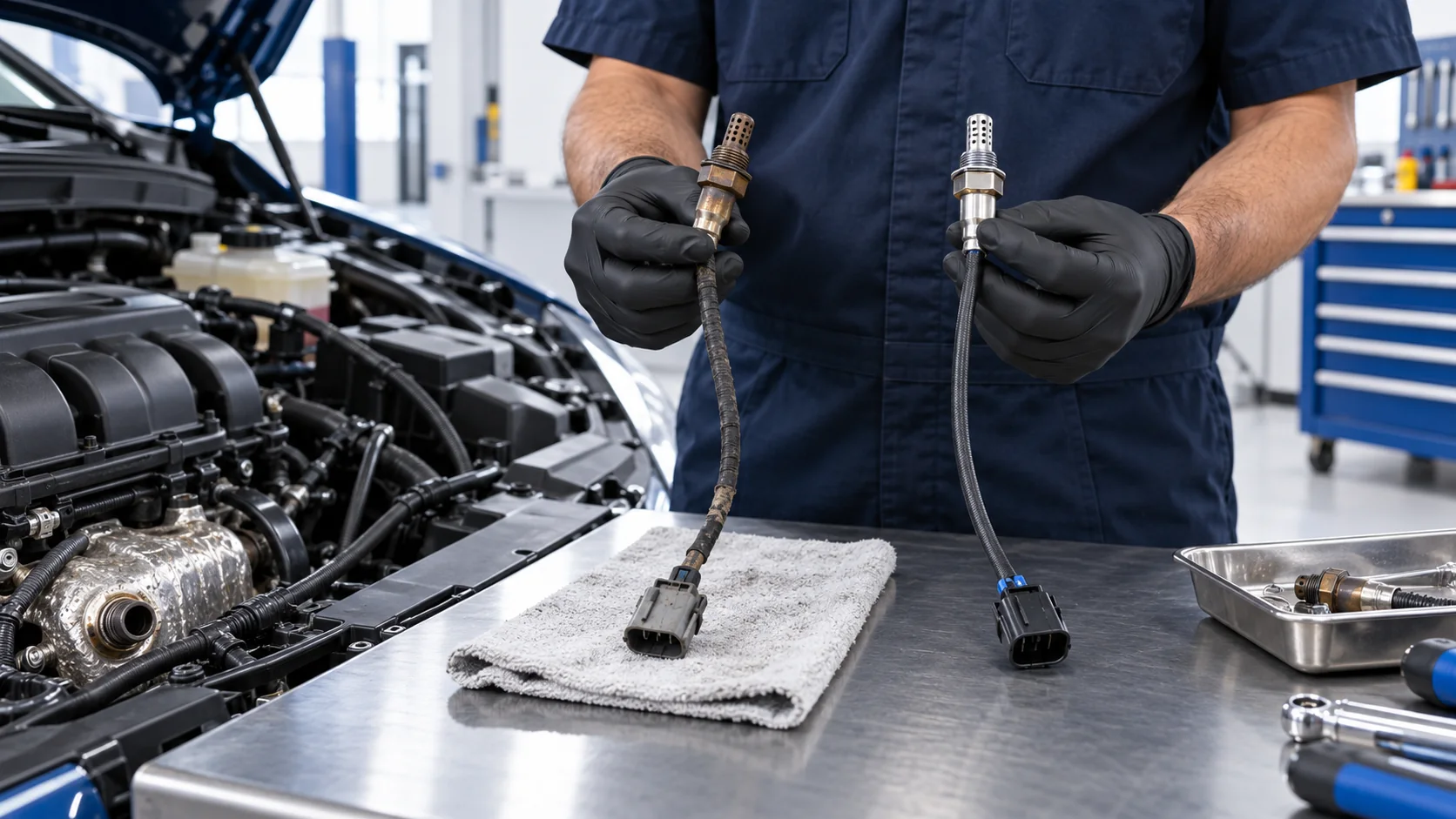

Compare o sensor antigo e o de substituição como um sistema

Place the parts side by side without contaminating or striking the sensing element. Compare the stamped or labeled identifiers, thread and sealing seat, hex access, shield length and hole pattern, cable protection, overall lead length, grommets and clips, connector housing, keying, latch, terminal count and secondary lock. Then compare the drawing or application specification. A visible match is a rejection screen, not final approval: heater resistance range, signal strategy, calibration and pin assignment may differ while housings look alike.

Reject or stop the installation if the cable must be stretched across the exhaust, the connector needs force, a clip cannot return to its original location, the shield contacts another component, the thread or seat differs, or the specified technology cannot be confirmed. Do not modify a direct-fit connector to make a candidate fit. If a universal sensor is expressly approved, use only its manufacturer’s application and splice procedure and retain the harness protection required near the exhaust.

Use decisões explícitas de parada, diagnóstico e liberação

A good workflow does not force every inquiry toward a sale. Use three visible states. Stop when vehicle identity, emissions configuration, physical position or sensor technology is ambiguous, or when two authoritative sources conflict. Diagnose when fitment is known but the evidence does not establish sensor failure; complete the circuit, leak, fuel-control and response checks required by the complaint. Release only when both the replacement need and the part identity are supported. Record who made the decision and which evidence was used.

This separation prevents a correct diagnostic conclusion from being paired with the wrong part, and it prevents a correct-looking part from being sold for an undiagnosed fault. It also gives customer service a truthful response when key data is absent: the status is Pending, not “probably fits.” For an RFQ, quote only released application rows and list blocked rows separately. For a repair, keep the original evidence until the relevant circuit response and legal monitor are verified after installation.

Use VIN, build and RPO evidence together

A Chevrolet badge and model year do not fully identify the powertrain. Silverado and Tahoe can offer multiple engines and emissions configurations, while Equinox and Malibu change engines and exhaust layouts across generations and markets. Begin with the VIN/build record and exact engine. Where GM RPO information is relevant and available from an authoritative vehicle record, preserve the codes that define the powertrain or emissions configuration. Do not copy an RPO list from an unrelated vehicle or decode it through an unverified marketplace page.

The under-hood emissions label is a separate check. Record the applicable certification or configuration information needed by the catalog without turning the label into a public vehicle identifier. If VIN/build, RPO context, label and current parts data do not agree, stop the application decision. The conflict may indicate an imported configuration, a catalog selection error, a previous engine or exhaust change, or simply incomplete data; none is solved by choosing the most common Silverado listing.

Translate GM HO2S and Bank/Sensor wording carefully

Chevrolet/GM diagnostic information may use HO2S with Bank and Sensor identifiers, while retail listings use upstream, downstream, front, rear, left or right. Preserve the full service term. Bank 1 is the cylinder bank containing cylinder 1, not a universal driver or passenger side. Sensor 1 is generally ahead of the relevant catalyst and Sensor 2 behind it, but the exact exhaust diagram controls where multiple catalysts or merged paths exist.

For an inline engine, do not assume a generic Bank 2 menu describes a physical circuit. For a V engine, identify cylinder 1 in the matching engine information before going under the vehicle. Map the exhaust path and connector number, then verify the physical harness when the exhaust is cool. This avoids disconnecting a nearby sensor, especially where leads cross or connectors mount above heat shields.

Keep Chevrolet engine and exhaust layouts separated

Silverado and Tahoe searches often focus on model name or engine displacement, but an application record should preserve engine family, build range, market/emissions configuration and drivetrain details where the catalog requires them. Equinox and Malibu may use inline engines, turbocharged variants or different powertrains across generations. A sensor used at one position on one engine cannot be transferred to another configuration from connector appearance alone.

1. Resolve exact vehicle, engine and build from authoritative records.
2. Match the emissions configuration and current service information.
3. Locate cylinder 1 and map every relevant catalyst path.
4. Identify the named HO2S circuit and connector in the wiring diagram.
5. Resolve OE identity and supersession in current parts data.
6. Compare thread, shield, connector, lead and clips before release.

Retain the source revision and excluded configurations in a distributor catalog. A broad row with hidden engine exclusions is harder to correct after inventory has been labeled and syndicated to marketplaces.

Chevrolet diagnostic evidence before a sensor decision

For heater-circuit codes, inspect shared supplies and fuses where the exact diagram shows them, the control circuit, connector terminals, harness heat exposure and element values under the GM procedure. Multiple related heater codes can point toward a shared vehicle-side issue. For signal or mixture codes, establish whether the sensor is reporting a real exhaust condition: inspect intake and exhaust leaks, airflow/load data, fuel delivery, purge, ignition, misfire and engine mechanical evidence.

For slow response or no activity, confirm the engine is warm and the required monitor conditions are present. Use the correct PID, units and controlled response test for the sensor technology. Do not condemn an upstream device because a generic scan value does not switch like a narrowband sensor. For P0420/P0430, preserve engine and fuel-control history, verify exhaust sealing and evaluate the correct sensor pair with catalyst evidence. The code does not nominate a downstream sensor for replacement.

Account for prior repairs and exhaust changes

Inspect whether a previous repair installed a universal sensor, altered a connector, damaged threads, omitted a clip or changed an exhaust component. Record modifications without assuming they are the cause. A replaced catalyst or sensor still requires correct identity and monitor diagnosis. Do not provide spacer, simulator, delete or software-defeat guidance; restoring lawful system operation is the objective.

Chevrolet application release record

For a Sunhyings sourcing inquiry, submit this record with expected quantity and packaging or approval requirements. The record supports a responsible capability review; it does not by itself confirm stock, MOQ, delivery, OE equivalence or fitment. Those claims remain project-specific and must be supported before quotation or publication.

Composite Chevrolet verification scenario

Cenário de engenharia composto: a Silverado request includes year and model but no engine/RPO or emissions label. A generic diagram labels Bank 1 by vehicle side, while the exact engine’s cylinder numbering has not been checked. The reviewer pauses the order, resolves vehicle and position identity, and then follows the correct circuit test. This scenario combines common catalog and diagnostic risks; it is not a Sunhyings customer case, fitment record or claim about a particular vehicle.

Composite Chevrolet diagnostic scenario

Cenário de diagnóstico composto: An Equinox has a lean code and a seller recommends the upstream sensor from year and model alone. Exact build and engine information first identifies the application and circuit. Fuel-trim review and a leak test then find unmetered air, while the installed sensor responds in the expected direction during the specified test. The air leak is repaired and the sensor is not replaced merely for reporting the lean condition.

The sequence is intentionally evidence-led: confirm the exact circuit, test the vehicle-side causes and compare the response with the applicable procedure before approving a part. It is a composite training example, not a Sunhyings customer, warranty result or statement that the named model commonly has this fault.

Verificar o reparo e monitorar

After repair, confirm connector lock, lead routing, heat clearance and exhaust sealing. Check the heater/circuit and technology-specific sensor response under defined conditions. Complete the applicable legal readiness monitor. A warning light that was cleared manually is not evidence that the original monitor passed; permanent codes may remain until the control module confirms a successful result.

Limite de emissões e reclamação de produto

Do not use spacers, defoulers, simulators, sensor deletes or software changes to conceal catalyst monitoring. These methods do not repair the root cause and may violate emissions law. This educational page does not confirm that Sunhyings sells, stocks, manufactures or guarantees a sensor for any Chevrolet application. Fitment remains Pending until project-specific evidence is matched.
