Your heat exchanger flange may leak due to:
- Thermal stress
- Loose or faulty bolts
- Gasket failure
- Overpressure
- Corrosion

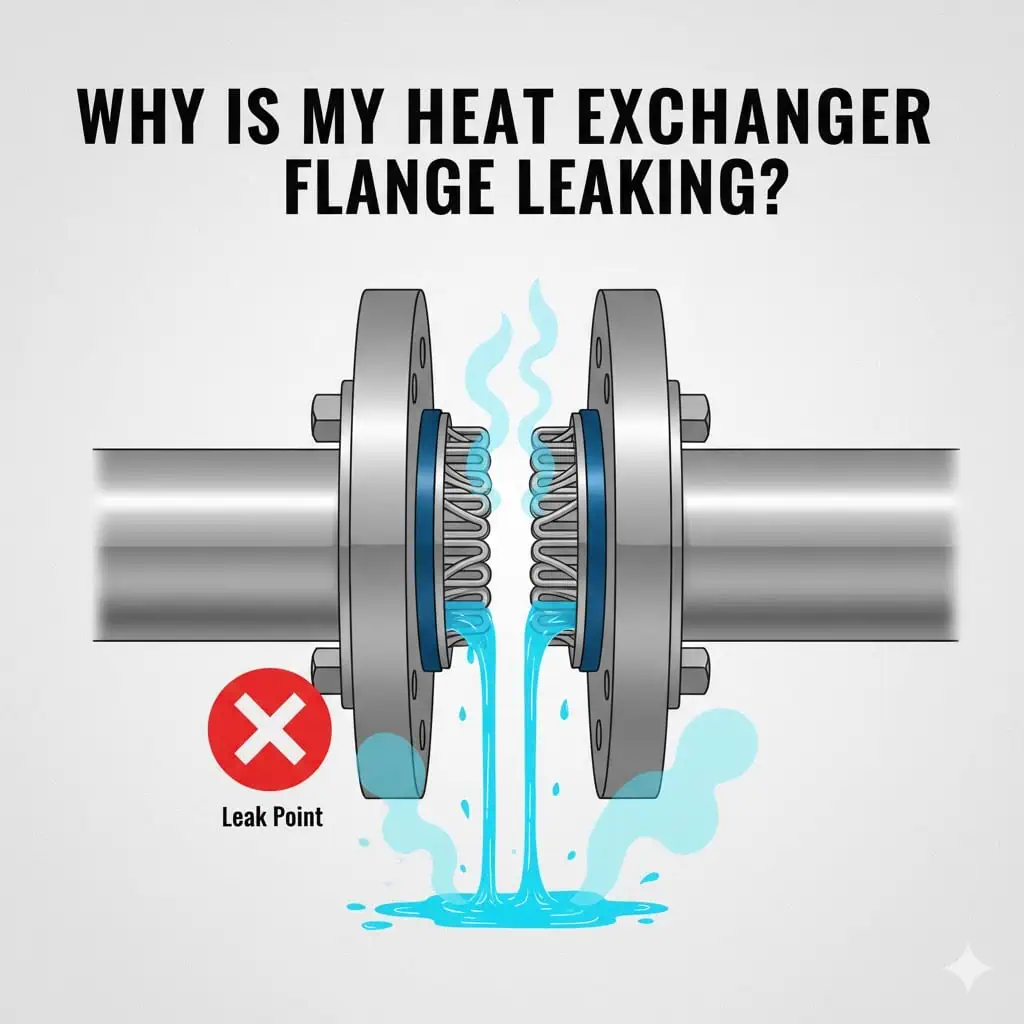

Why is my Heat Exchanger flange leaking? Leaks can cause rapid damage. For example, a biochemical manufacturer faced high costs and lost production when a spiral heat exchanger’s gasket failed quickly. Acting fast helps you prevent serious equipment problems.
Why is my heat exchanger flange leaking?
Thermal Stress and Distortion
Direct Answer:
Rapid or extreme temperature changes cause metal parts to expand and contract at different rates, leading to flange distortion and leaks.
When you operate your heat exchanger under conditions with temperature swings greater than 110°C (230°F), the metal in the flange can warp or misalign. This warping breaks the seal and allows fluids to escape. You may notice leaks after a sudden startup or shutdown, or when switching between hot and cold fluids. Heat transfer leaks often start small but can grow quickly if you do not address the underlying thermal stress.
Tip: Monitor temperature changes in your system. Gradual heating and cooling help reduce the risk of flange leaking.
Loose or Improper Bolts
Direct Answer:
Bolts that are loose or not tightened correctly fail to keep the flange sealed, which leads to leaks.
You must use the right torque and lubrication for each bolt material. If you skip this step, the bolts can loosen from vibration, heat, or pressure changes. Maintenance records show that up to 85% of gasket failures come from improper bolt installation. This makes bolt care one of the most important causes of flange leaks to watch for.
- Use the correct torque for carbon steel, stainless steel, or alloy steel bolts.
- Always lubricate bolt threads and nut surfaces.
- Check bolt tightness after temperature cycles.
Gasket Issues
Direct Answer:
Gasket failure from poor material choice, aging, or improper installation often causes leaks at the flange.
Gaskets seal the space between flange faces. If you use a gasket made from skived virgin PTFE, it may creep or deform, losing its seal. Compressed fiber gaskets may not last as long as flexible graphite, which handles heat and chemicals better. Over time, gaskets lose elasticity, develop cracks, or delaminate, especially if exposed to high temperatures or chemicals. This aging process reduces the gasket’s ability to prevent heat transfer leaks.
| Gasket Material | Prone to Failure Characteristics |
|---|---|
| Skived Virgin PTFE | Creep and cold flow, poor bolt load retention |
| Compressed Fiber | Less durable, not ideal for high heat or chemicals |
| Flexible Graphite | Better for heat and chemical resistance |
| Elastomers | Vary by compound, must match service conditions |
Note: Replace gaskets at regular intervals and choose materials that match your process conditions.
Overpressure and Water Hammer
Direct Answer:
Sudden pressure surges, such as water hammer, can damage the flange connection and cause leaks.
Water hammer happens when fluid flow stops or changes direction quickly, often from pump failures or valve closures. This creates a shock wave that can rupture tubes or damage the flange seal. You may not notice the damage until you see a leak or inspect the inside of the heat exchanger. Overpressure events can also push the gasket out of place, leading to heat transfer leaks.
- Watch for sudden noises or vibrations in your system.
- Install pressure relief devices to protect your flanges.
Corrosion and Wear
Direct Answer:
Corrosion and physical wear weaken the flange, making it more likely to leak over time.
Flanges face erosion corrosion when fast-moving fluids strip away protective layers, exposing the metal to further attack. Physical corrosion happens when fluids impact the flange surface, especially in large-capacity systems. The choice of flange material matters. Stainless steel flanges, for example, resist pitting and crevice corrosion better than many other metals. If you see thinning, pitting, or rough surfaces on your flange, you may have a corrosion problem.
| Material Type | Corrosion Resistance Characteristics |
|---|---|
| Stainless Steel | High resistance to pitting and crevice corrosion due to chromium content |
| Nickel Alloys | Excellent for harsh, corrosive environments |
| Duplex Stainless Steels | Preferred for extreme environments, high strength and corrosion resistance |
Tip: Choose flanges made from corrosion-resistant materials and inspect them regularly for signs of wear.
Table: Most Frequently Reported Causes of Heat Exchanger Flange Leaks
| Cause | Explanation |
|---|---|
| Thermal Stress & Flange Distortion | Metal expands/contracts at different rates, causing warping and misalignment. |
| Loose or Improperly Torqued Bolts | Heat, vibration, and pressure loosen bolts, reducing gasket compression and causing leaks. |
| Inadequate Hardware or Gasket Design | Persistent leaks may require upgraded gaskets or hardware for better seal integrity. |
If you ask, “why is my heat exchanger flange leaking?”, you should check for these common issues first. Addressing them early helps you avoid costly downtime and keeps your system running smoothly.
Fixing and Preventing Heat Exchanger Flange Leaks
Inspect and Tighten Bolts
Direct Answer:
Check and tighten bolts regularly to keep heat exchanger flanges sealed and safe.
You should inspect bolts for signs of wear or looseness. Use a torque wrench and tighten bolts in a staggered pattern. This method helps distribute stress evenly and prevents leaks. Always measure the distance between flanges at several points to ensure even tightening. For larger bolts, apply torque in stages, such as 30%, 50%, and then 70% of the final value. Follow manufacturer guidelines for hydraulic tensioners if needed.
| Frequency Category | Inspection Interval | Conditions |
|---|---|---|
| High Frequency | Every 1-6 months | Hazardous, high pressure, or toxic service |
| Medium Frequency | Every 6-12 months | General service, moderate conditions |
| Low Frequency | 12-24 months | Non-critical, low-pressure service |
Replace or Upgrade Gaskets
Direct Answer:
Replace gaskets every few years and upgrade to high-performance types for better leak prevention.
Gasket life depends on temperature, pressure, and fluid type. Most gaskets last three to five years, but harsh conditions may shorten this time. High-performance gaskets offer quick replacement, better adaptability, and energy efficiency. They also handle different fluids and reduce downtime.
| Advantage | Description |
|---|---|
| Quick Replacement | Fast swaps keep your system running |
| Versatility | Works with many fluids and conditions |
| Energy Efficiency | Lowers operational costs |
Tip: Always match gasket material to your operating conditions.
Address Thermal Expansion
Direct Answer:
Use expansion joints and proper design to manage thermal growth and protect flange connections.
Expansion joints absorb movement from temperature changes. You can choose between bellows or flanged and flued types. These joints help prevent stress that leads to leaks. Matching the metallurgy of tubes and shells also reduces thermal expansion problems. Proper installation ensures the joints work as intended.
- Expansion joints absorb pipe growth and contraction.
- They reduce stress on flange connections.
- They help prevent gasket failure and leaks.
Control Pressure and Water Hammer
Direct Answer:
Install pressure control systems and check valves to prevent surges that damage heat exchanger flanges.
Choose check valves that close smoothly to avoid water hammer. Oil dashpot devices or actuators can slow valve closure and reduce sudden pressure changes. Automated pressure control systems help keep pressure steady, which lowers the risk of leaks. Studies show these systems can cut pressure events by half.
| Key Findings | Description |
|---|---|
| Pressure Management | Keep hot and cold streams at similar pressure to reduce stress |
| Fewer Pressure Events | Automated controls mean fewer leaks and safer operation |
Regular Maintenance and Quality Flanges
Direct Answer:
Follow a set maintenance schedule and use high-quality flanges to prevent leaks and extend equipment life.
You should inspect, clean, and test your heat exchanger flanges regularly. Use qualified personnel and follow industry standards like TEMA and ASME PCC-1. Choose flanges made from durable materials, such as Sunhy stainless steel flanges, for better corrosion resistance and leak prevention. These flanges offer exceptional strength and reliability, especially in demanding environments.
- Monthly: Visual checks and listen for unusual sounds.
- Quarterly: Pressure tests and surface cleaning.
- Annually: Full disassembly, chemical cleaning, and part replacement.
Note: Professional support helps you select the right flange for your application and ensures long-term reliability.
Act quickly when you notice persistent leaks at a flange.
You prevent costly repairs by inspecting for corrosion and stress corrosion cracking. Regular cleaning and routine inspections help you spot corrosion, rust, and stress corrosion cracking early.
- Consult experts for flange selection to avoid stress corrosion cracking.
- Choose trusted suppliers like Sunhy for reliable solutions.
- Keep records and schedule maintenance to reduce corrosion and stress corrosion cracking.
FAQ
What should you do first if you spot a flange leak?
Direct Answer:
Shut down the system immediately.
You should inspect the flange area, check for loose bolts, and look for visible gasket or corrosion issues.
How often should you replace heat exchanger gaskets?
Direct Answer:
Replace gaskets every 3–5 years.
You may need to replace them sooner if you notice leaks, chemical damage, or visible wear.
Why choose stainless steel flanges for heat exchangers?
Direct Answer:
Stainless steel flanges resist corrosion and last longer.
You get better leak prevention and reliability, especially in harsh or high-pressure environments.
